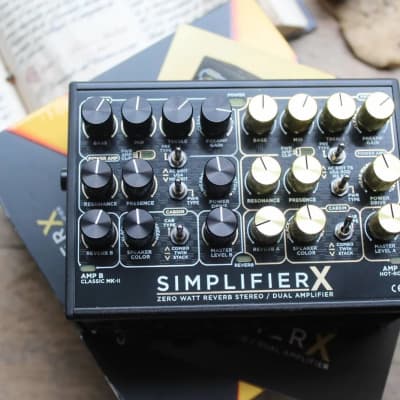

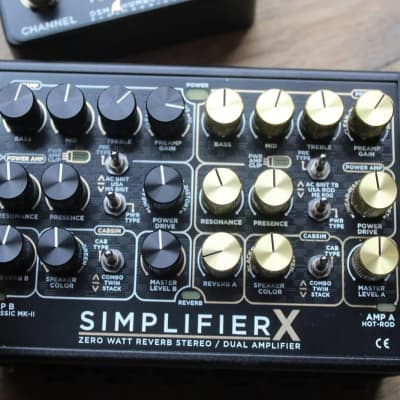

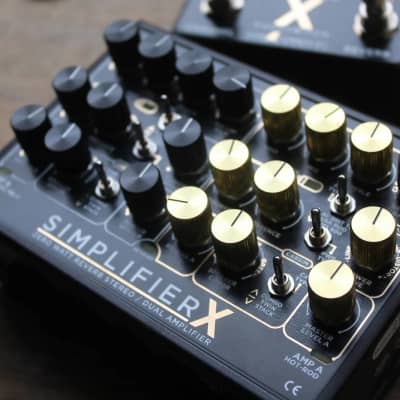

DSM "Simplifier X"

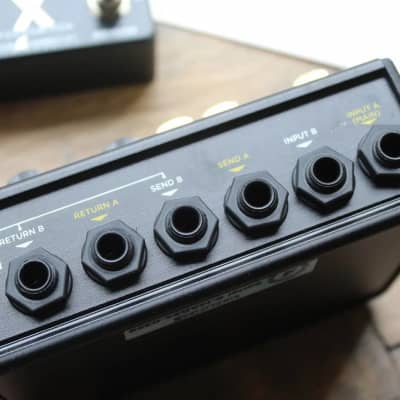

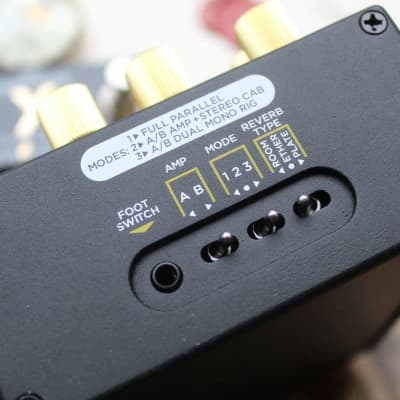

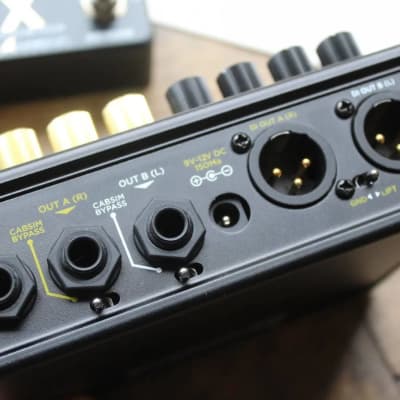

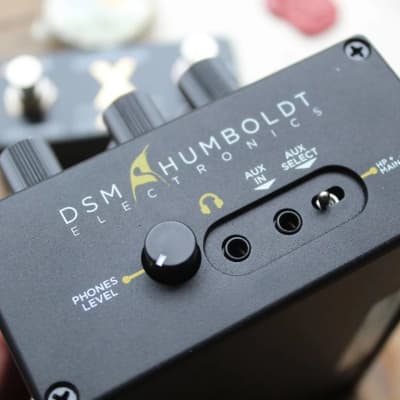

The SIMPLIFIER X was thoroughly designed and developed to fulfill the needs of guitarists seeking for versatility, flexibility, practicality and of course, the ability to get the best tones ever produced by analog gear. True stereo (Two independent inputs) 3 different useful modes - No extra Y cables needed - Dual FX Sends/Returns - THRU jack for dedicated DRY AMP signal path - 1/4 Outputs with Cabsim bypass -Two XLR DI outputs - Selectable AUX input for silent practice thru headphones only or send your auxiliary signal straight to PA using the XLR outputs.

HEAVY DUTY custom made anodized aluminium case in sandblasting /frosted black finish. WEIGHT: 490 grs (1 lb) Dimensions: 125 x 105 x 65 mms - 5,2x 3,9x2.5 inches Power supply requirements: Voltage: 9 to 12V DC regulated Connector: 2.1mm DC jack, Center negative Current consumption: 200mA Recommended supply current: 250mA and up Input Impedance: Input: 1Meg Ohm L & R return: 1Meg Ohm Output impedance: Send: 1K Ohm Unbalanced Outputs: 4.7K Ohms Balanced Outputs: 100 Ohms Headphone amp specs: Power: 135mW into 32 Ohms. * Use with 16, 32, 64 and 96 Ohm Headphones. * Loss of power can occur with higher impedance headphones.
