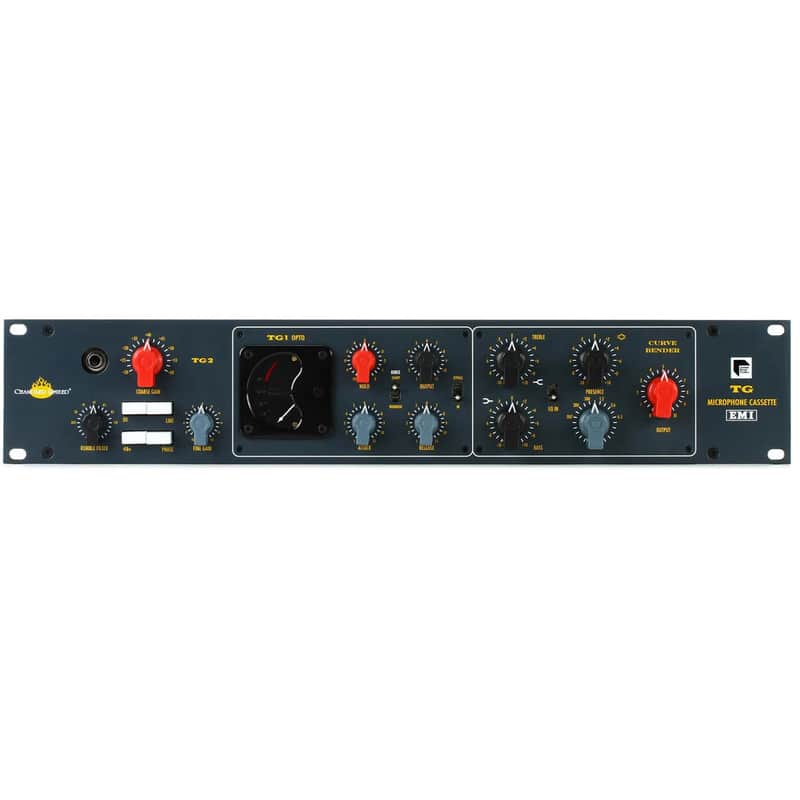

The Chandler Limited TG Microphone Cassette Channel Strip is a full featured channel strip, combining element of the EMI / Abbey Road Studios TG12345 recording and mastering consoles of the late 60s and 70s. Get the iconic sound of Abbey Road on your music, whether tracking, mixing, or mastering with the TG Microphone Cassette.
The Chandler Limited TG Microphone Cassette finally delivers a true channel strip of the cassette found in the famed EMI TG12345 desk. Not simply a smash-up of the TG2 Mic Preamp / TG Channel, TG1 Compressor, and the TG Channel/ Curve Bender EQ, the Chandler Limited TG Microphone Cassette replicates the basic feature set found in what is an actual channel microphone cassette of the EMI TG12345 desk - but also delivers incredibly useful features, including the Rumble Filter of the REDD.47, changing the compression circuit to an electro-optical design, and separate access to the compressor from the rest of the microphone cassette. Chandler Limited's critically acclaimed , , and , each known for their remarkable reproduction of the EMI TG sound, have been combined to form the ultimate TG Microphone Cassette reimagined to work in a modern recording studio context.
Power SupplyThis Chandler unit requires the , which is not included. The PSU-1 has an internal switch for setting voltage to 120V or 220V (115V/230V) and can power up to two Chandler units. A Power Supply Connection Cable will be included with your purchase.
Chandler Limited TG Microphone Cassette Channel Strip Features
PRE-AMP: The pre-amp section of the TG Microphone Cassette makes use of the based on the vintage EMI TG12428. The TG2 pre-amp section includes switchable coarse and variable fine gain adjustment controls for up to +70db overall gain, selectable LINE, DI, 48V phantom power, phase reverse, and switchable rumble filter (low cut.) The TG2 pre-amp section is coupled directly to the Curve Bender equalizer section.
EQ: The TG Microphone Cassette's equalizer section is derived from the famed and greatly expanded . The Curve Bender EQ section provides Hi and Low shelf, frequency selectable presence, output control, and bypass functionality. The Curve Bender EQ section is the second stage of the TG2 pre-amp section, and the EQ output control works as a fader would on a console.
LIMITER: The compressor/limiter section of the TG Microphone Cassette is a special adaptation of the tracing its lineage to the historic EMI TG12413 mixing and mastering console limiters. EMI technical engineers experimented with the use of optos in their audio compressors, and now for the first time ever Chandler Limited introduces the TG1 Opto Limiter. The TG1 Opto Limiter section of the TG Microphone Cassette is patchable apart from the TG pre-amp and EQ, allowing for independent use of the compressor/limiter on other sources. The TG1 Opto is stereo linkable to a second unit via a standard 1/4 cable. The TG1 Opto Limiter's feature-set includes: HOLD, Attack, Release, selectable sharp/rounded knee, output or makeup gain, and true bypass.
Chandler Limited TG Microphone Cassette Channel Strip Specifications
Channels: Mono
TG2 Preamp: Transistor amplifier
Mic/Line: XLR Input (Transformer balanced, Mic 300Ω Impedance)
DI: 1/4 Unbalanced
Maximum gain: +70db, Coarse Gain (Stepped +20 to +60db), Fine Gain (Variable +/-10db)
Rumble Filter (Low Cut): 6 Frequencies (Out, 33,41,47,65,82,110hz)
Phantom power: Phantom (+48V)
Phase: 0-180º
Curve Bender EQ: Treble/Bass Shelf, Presence (Out, 300hz,500hz,1.2k,3.6k,6.5k), Output control, Bypass, XLR Output
TG1 Opto Limiter: Independently patachable (XLR I/O), Hold, Attack, Release, Knee (Sharp/Rounded), Output (makeup gain), Bypass, Linkable (1/4 Jack)
Chandler Limited TG Microphone Cassette Channel Strip Includes
Chandler Limited TG Microphone Cassette Channel Strip
Power Supply Connection Cable
Manufacturer Warranty
