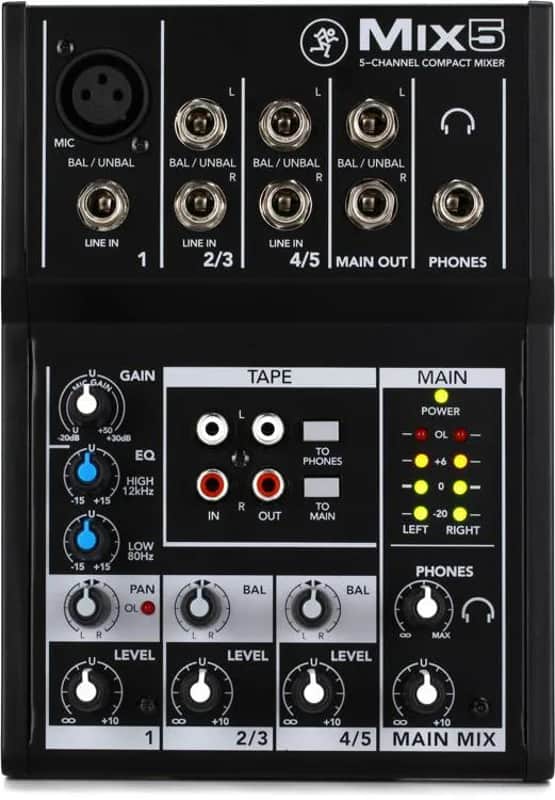

Mackie MIX5 Overview
The Mackie Mix5 is a 5-channel compact mixer that features high-quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4" line inputs, and is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.
The mic/line input is equipped with XLR and 1/4" connectors, phantom power, a 2-band EQ, pan, level control and an LED overload indicator. Each of the two stereo 1/4" line inputs features a 3-band EQ, balance control, level control, and an LED overload indicator.
Dedicated stereo RCA inputs/outputs for playback or recording
Headphone and stereo control room outputs
Rugged, reliable design built to last
Compact and portable
Mackie MIX5 Specs
Noise
(20 Hz – 20 kHz bandwidth, , 150 ohms source impedance, EIN)
All outputs, master levels and channel levels off –100 dBu
All outputs, master levels unity, all channel levels off –90 dBu
All outputs, master levels unity, 1 channel level unity –85 dBu
THD+N
(20 Hz – 30 kHz bandwidth)
Mic input to main output <0.25% @ +4 dBu output
Attenuation and Crosstalk
(20 Hz – 20 kHz bandwidth)
Inputs to outputs @1 kHz (-85 dB)
Main mix off @1 kHz (-75 dB)
Frequency Response
Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz
Equivalent Input Noise
-125 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio
1 kHz better than –70 dB, (mic in to insert send out, max gain)
Impedance
Mic In: 2 kOhms
All Other Inputs: 10 kOhms or greater
Tape Out : 1 kOhms
Phones: 22 ohms
All Other Outputs: 120 ohms unbalanced, 240 ohms balanced
Maximum Level
Mic Inputs (XLR): +19 dBu
Aux Return In: +16 dBu [Mix 8]
All Other Inputs: +21 dBu
All Outputs: +21 dBu
Equalization
High Shelving: ±15 dB @ 12 kHz
Low Shelving: ±15 dB @ 80 Hz
Power Requirements
Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]
Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]
Output: 18 VAC, 600 mA
Dimensions
1.7 x 5.5 x 7.7" (43 x 140 x 196 mm)
Weight
1.4 lb (0.6 kg)
