Marshall Electronics CV508 Mini Full HD Camera - Camera

• Successor model to the CV506 with identical features but a new sensor
• 2.5 megapixel (1/2.8" / 2.9μm / 4:2:2 color)

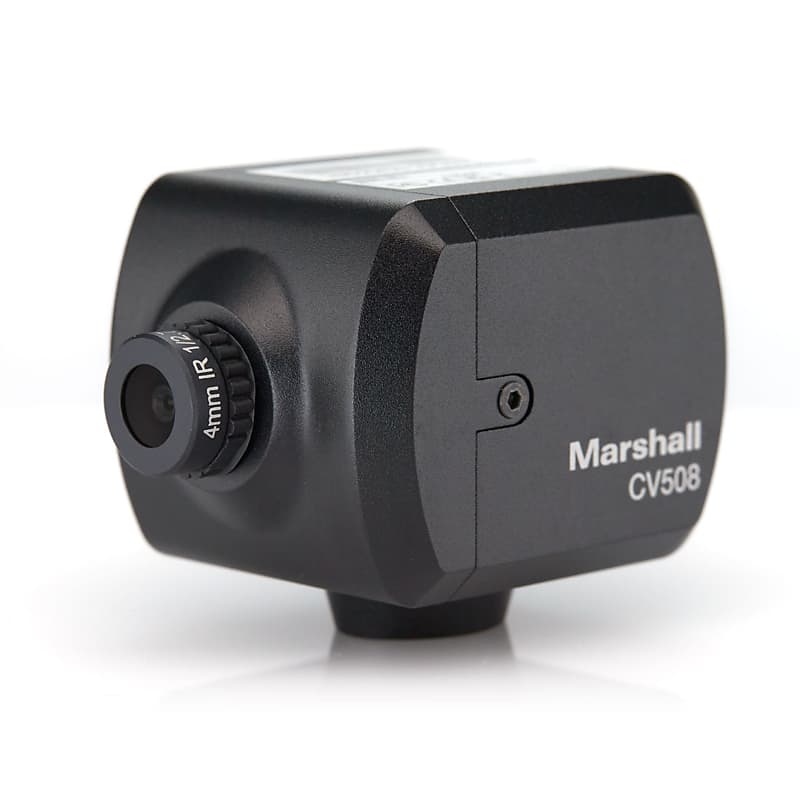

• 4.0mm lens, 85° horizontal AOV (included in the scope of delivery)
• M12 interchangeable lens
• Versatile image settings: Red/Blue, White Balance, Gain Control, Pedestal, Shutter, White Clip, Exposure, Gamma, Resolution, Frame Rates
• Day/night mode (automatic and manual selectable)
• Adjustment via or screen menu: by joystick on the cable
• Compact & robust housing

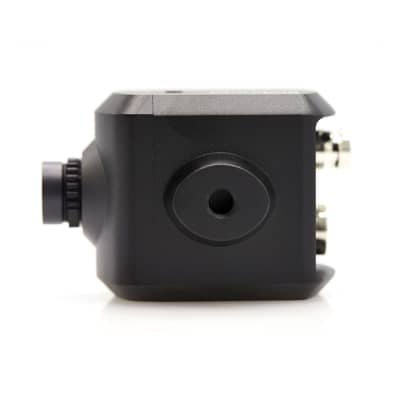

• 1/4" internal thread on the underside

Resolution & frame rates

• 1920 x 1080p, 1920 x 1080i (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)
• 1280 x 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps)

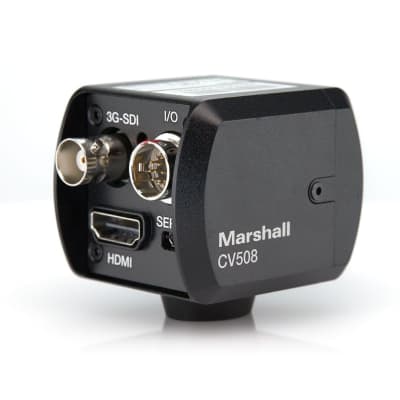

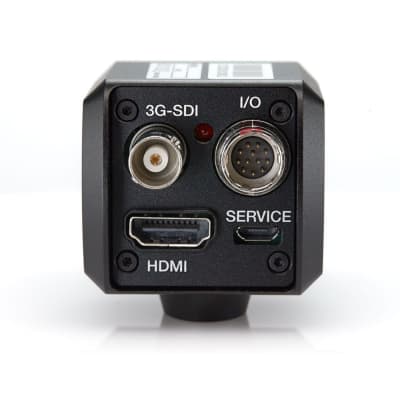

Connections

• 3G-SDI
• HDMI
• RS-485 (with clamp connection for 2-pin cabling)
• USB port for firmware updates
• 3.5mm Stereo audio input
• 12 V DC

Power consumption

• 6W (12V DC / 500mA)

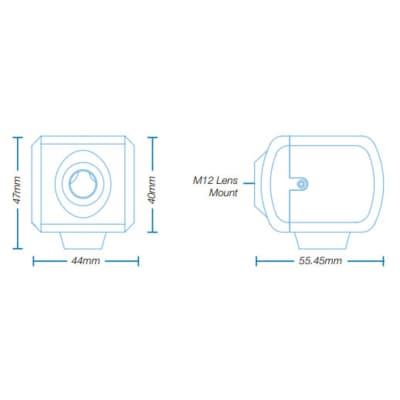

Dimensions & weight

• HxWxD: 47mm x 44mm x 56mm
• 110g

Scope of delivery

• camera
• 3.6mm lens

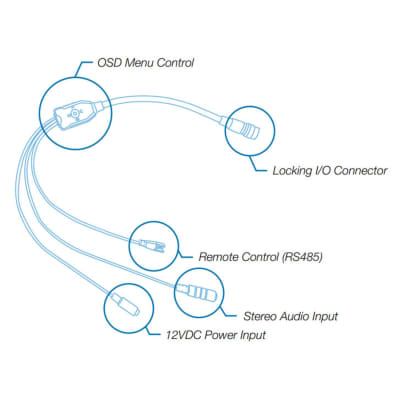

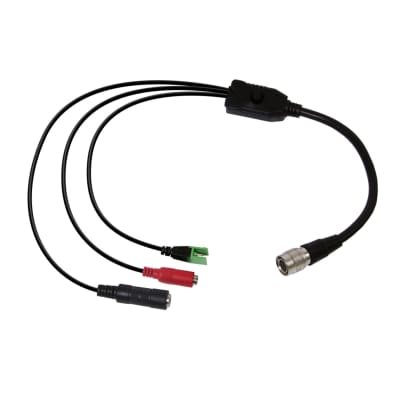

• Breakout cable
• power supply

The Marshall CV508 mini camera is the direct CV506 successor and scores with a new sensor for even better results. With its compact design and first-class performance, this module is ideal for broadcast, sports and live event applications. The CV508 offers outstanding image quality in Full HD, with a resolution of up to 1920x1080 at 60fps. Thanks to its high-quality image sensor and precise optics, the camera delivers razor-sharp images with vivid colours and wide dynamic range. Furthermore, it offers a variety of professional features, including RS-485 control, genlock, OSD menu and programmable presets for easy adaptation to different shooting situations. With its robust and weatherproof design, the Marshall CV508 is suitable for use in demanding environments - whether in studios, stadiums or outdoor shoots - the CV508 is the ideal choice for professional videographers with high demands.
