JBL 306P mk2 Studio Monitor - High-Performance Studio Sound

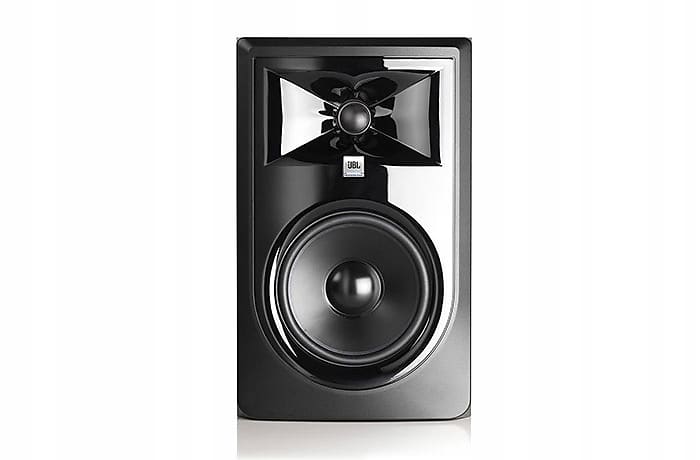

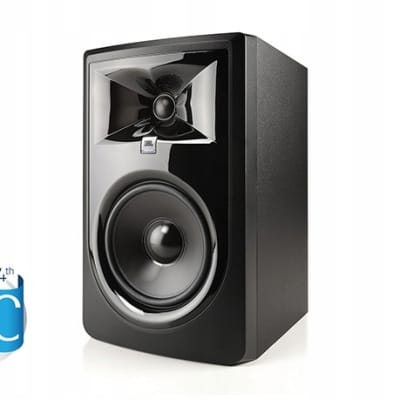

Introducing the JBL 306P MKII - Studio Monitor

Experience unparalleled JBL performance in your studio with the JBL 306P MKII - Studio Monitor. This next-generation portable studio monitor delivers legendary JBL performance and is designed for every studio enthusiast.

Featuring the patented Image Control Waveguide driver for precise imaging and a wide, environmentally friendly design, the JBL 306P MKII offers optimized transient response and improved linearity. The patented Slip Stream™ low-frequency port ensures excellent bass quality at all playback levels.

Equipped with dual integrated custom Class-D amplifiers, producing a powerful 82 watts, the JBL 306P MKII delivers high power and dynamic range. The new EQ settings limit low-frequency variants introduced by the environment, while the HF Trim switch adjusts high-frequency output to match room acoustics or personal preferences.

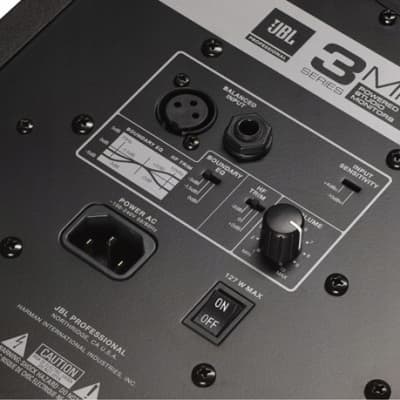

With flexible connectivity options, including balanced XLR and 1/4" TRS inputs, input sensitivity switch (+4dBu / -10dBV), and adjustable volume control, the JBL 306P MKII is designed to accommodate every setup. It adheres to JBL's Linear Spatial Reference design criteria, ensuring exceptional accuracy in any workspace.

Rest assured of its reliability with the rigorous JBL 100-hour full-power test. This studio monitor combines outstanding performance with a sleek and modern design, adding visual enhancement to any studio.

TECHNICAL SPECIFICATIONS:

• LF Transducer: 165mm (6.5″)
• HF Transducer: 25mm (1″)
• Crossover: 1425Hz 4th Order Acoustic Linkwitz-Riley
• Input Sensitivity (-10dBV Input): 92dB / 1m
• HF Transducer Power: 56W, Class-D
• LF Transducer Power: 56W, Class-D
• Frequency Response (±3dB): 47Hz – 20kHz
• Frequency Range (-10dB): 39Hz – 24kHz
• Max SPL: 110dB
• Coverage Angle: 120° x 90°
• Inputs: 1 x XLR female, 1 x TRS female, balanced
• Power Consumption: 100 – 240VAC (±10%), 50 / 60Hz
• Enclosure: 15mm MDF
• Dimensions (H x W x D): 361 x 224 x 282mm (14.2″ x 8.8″ x 11.1″)
• Weight: 6.1 kg

• Condition: Brand New
• Manufacturer Code: 306P-MK2
• Brand: JBL
• Model: 306P MKII
• EAN: 691991007712

Elevate your studio sound with the JBL 306P MKII - Studio Monitor and enjoy exceptional quality and performance.
