The Celestion TF0615MR 6" professional midrange speaker is a purpose-built device dedicated to high-SPL, low distortion reproduction of the critical midband frequencies. Its integrated sealed chassis isolates the driver's soft parts from the loudspeaker system woofer's "back pressure", while at the same time eliminating the need to construct a separate sub-enclosure. The TF0615MR features a 1.5" high-temp voice coil and 17 oz. ceramic ferrite magnet, guaranteeing high efficiency and excellent power handling.
Product Details

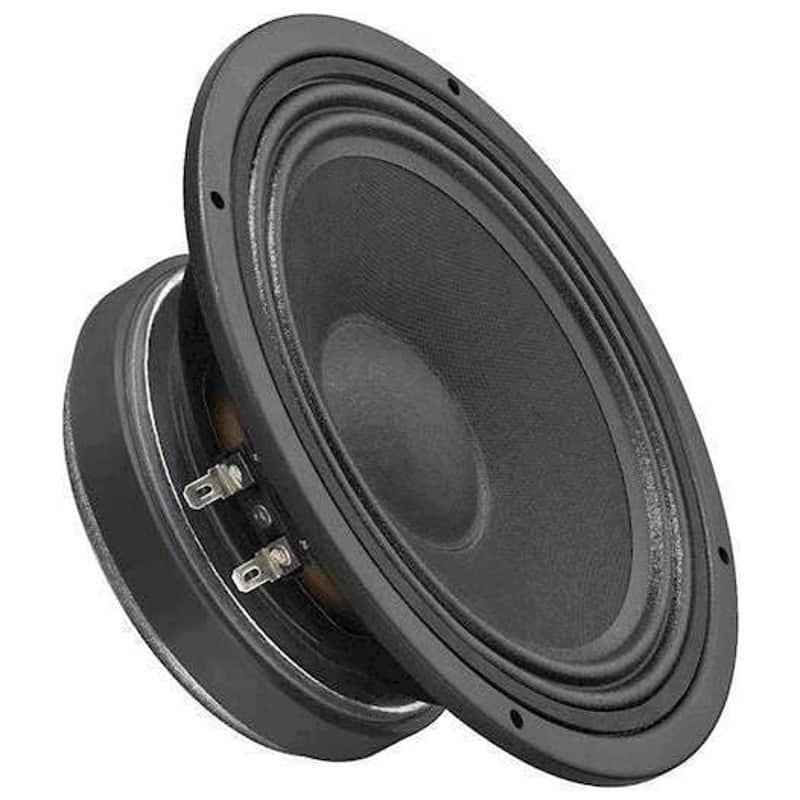

Celestion TF0615 6" 100 Watt Professional Woofer Driver 8 Ohm
The versatile Celestion TF0615 6" driver offers excellent performance when used in bass and dedicated midrange applications. Its 1.5" copper voice coil is set onto a polyimide former, which assures good long-term resistance to the detrimental effects of extreme high temperatures.
A cloth sealed surround is combined with an optimized Kevlar-loaded paper cone, to ensure the speaker's frequency response is smooth and extended. An intelligent heat vented motor assembly enhances cooling, and a rigid chassis design for maximum energy transfer.Product Specifications
Nominal Diameter 6"
Power Handling (RMS) 100 Watts
Power Handling (max) 200 Watts
Impedance 8 ohms
Frequency Response 85 to 6,000 Hz
Sensitivity 95 dB 1W/1m
Voice Coil Diameter 1.5"
Magnet Weight 17 oz.
Thiele-Small Parameters
Resonant Frequency (Fs) 107.2 Hz
DC Resistance (Re) 7.25 ohms
Mechanical Q (Qms) 5.83
Electromagnetic Q (Qes) 0.68
Total Q (Qts) 0.61
Compliance Equivalent Volume (Vas) 0.23 ft.³
Mechanical Compliance of Suspension (Cms) 0.19 mm/N
BL Product (BL) 9.03 Tm
Diaphragm Mass Inc. Airload (Mms) 11.39g
Moving Mass Of Diaphragm (Mmd) 11.31 g
Maximum Linear Excursion (Xmax) 2.50 mm
Surface Area of Cone (Sd) 188 cm²
Materials of Construction
Cone Material Paper / Kevlar
Surround Material Cloth
Voice Coil Wire Material Copper
Voice Coil Former Kapton® / Polyimide
Basket / Frame Material Steel
Magnet Material Ferrite
Mounting Information
Overall Outside Diameter 7.01"
Baffle Cutout Diameter 5.79"
Depth 2.91"
Bolt Circle Diameter 6.63"
# Mounting Holes 4
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
Sealed Volume 0.33 ft.³
Sealed F3139 Hz
Vented Volume 0.56 ft.³
Vented F365 Hz
Celestion TF0615 6" 100 Watt Professional Woofer Driver 8 Ohm
Brand Celestion
Model TF0615
UPC 739894588959
