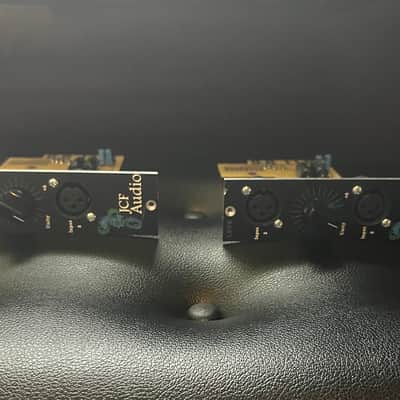

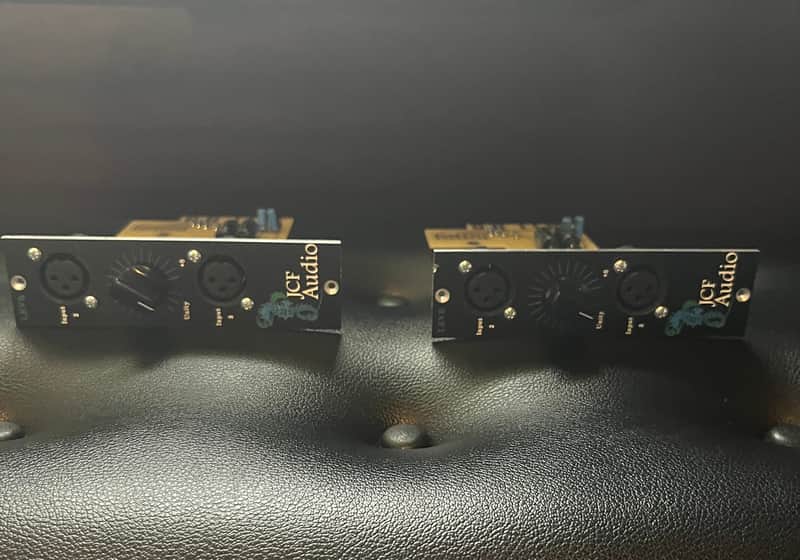

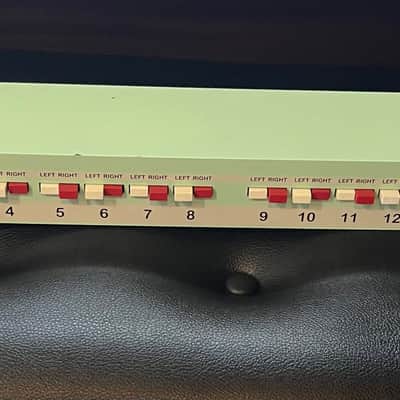

Two well kept JCF LEVRS & the Roll Music passive summing box. These surprised me when I first tried them , by making my mixes sound clear than mixing in the box, especially on a dense song chorus , there is just a bit more air around the sounds ! !So if you are looking for a clear and slightly more seperated type of sound = this is what these two do to your mixes.
They all work 100%
I'm also selling a few other items, some which are great for mixing , and one being a brand new Rupert Neve lunchbox ( to house the LEVRS )
The LEVRS were made to go with the Foclrom summing box. The Summing box is passive and so the LEVRS make up the volume.
The JCF Audio - is an active summing module for the popular 500 Series format. The offers an affordable, active, non-exclusive alternative to passive summing users which other solutions do not. The is specifically designed for use with the Roll .
• Common 500 Series Modular Form Factor
• High quality capacitors used throughout
• ~9dB Front Panel Gain Adjust
• Low Power Consumption
• Opt. floating output with Cinemag CMOQ-2S
• Push-pull circuitry with the stability of single element inputs.
• Does not preclude use of passive-to-pre setups
• Two courtesy parallel front panel inputs
Specifications
AC Input Impedance: 0 Ohms Balanced
Output Impedance: 200 Ohms Balanced
Frequency Response: -3dB @ 670kHz and ~3Hz
Minimum Recommended Load:600 Ohms or greater
Maximum Output Level: +28.6dBu rms
Distortion: <.01% @ +4dBu, 0.025 % @ +28dBu
Noise: -79dBu (BW lim 80kHz)
Gain: Variable from 0dB to ~+9db
Power Supply And Connector: +/- 16v +/- 20 ma.
500 Series compatible - 15 pin .156” edge type
