About this listing

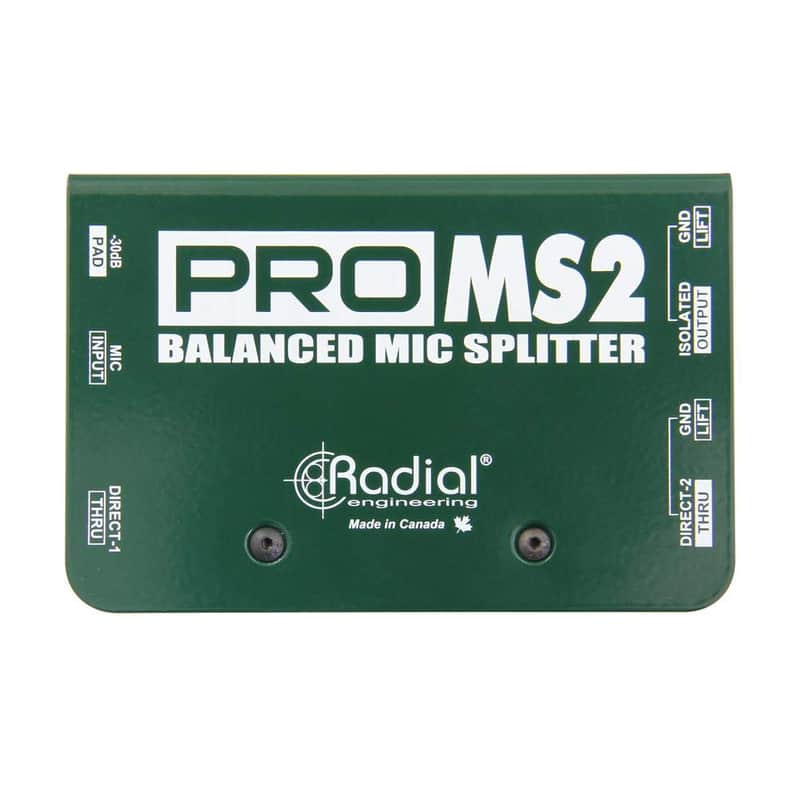

The ProMS2 is a balanced mic-level splitter designed to send a signal to multiple destinations simultaneously on stage, with one transformer-isolated output and two direct outputs. Portable mic splitting for stage use The ProMS2 is a mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A high quality Eclipse transformer inside provides galvanic isolation to eliminate hum and buzz from ground loops, while delivering a wide frequency response and low distortion. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to be connected as well. The ProMS2 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak. Key Features Send one microphone signal to three destinations simultaneously Eclipse transformer for clean & transparent audio Eliminates hum and buzz caused by ground loops Single isolated output provides optimal noise rejection Technical Specifications Audio circuit type Passive Transformer Eclipse ET-MS10 Frequency response 20Hz ~ 20KHz (+0dB -1dB) Dynamic range >140dB Gain -0.5dB Total harmonic distortion 0.001% Intermodulation Distortion 0.003% Phase Deviation 1° @ 20Hz Input Impedance 2.5K Ohms, unbalanced Output Impedance 140K Ohms, balanced Common Mode Rejection Ratio -115dB at 60Hz Noise -140dB Maximum Input +26dBu Input Connectors XLR-F Output Connectors XLR-M Construction 14-gauge steel chassis & outer shell Size (L x W x D) 5.0" x x Weight 1.55lb (0.7kg) Shipping weight 1.92lb (0.87kg) Power Passive, no power required Conditions For use in dry locations only between 5°C and 40°C Warranty Radial 3-year, transferable
Price$154.99
