About this listing

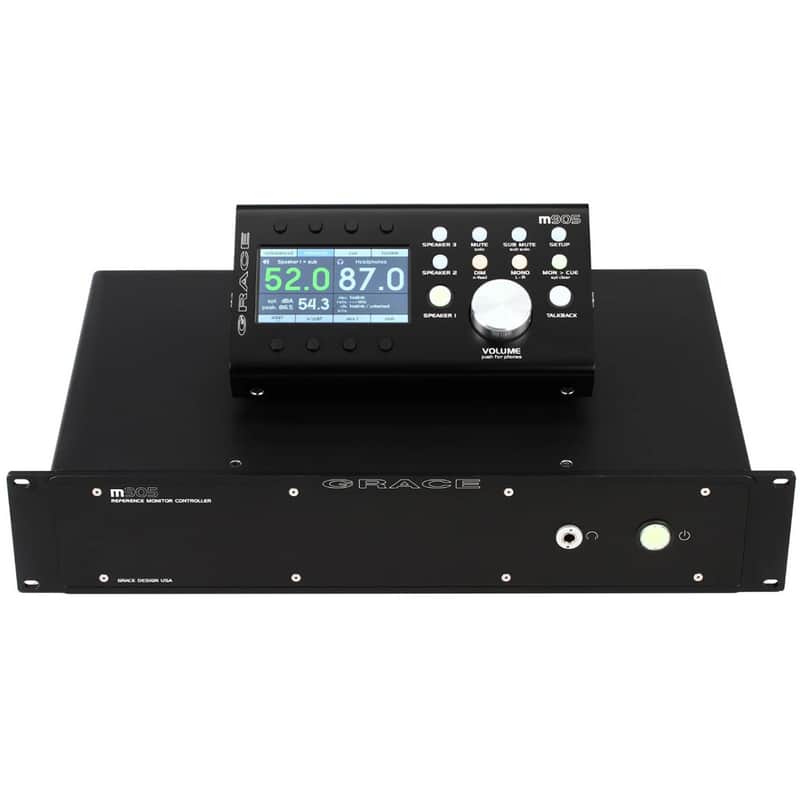

The Grace Design m905 Analog Monitor Controller is the less expensive "analog" only version of the Grace Design m905. The m905 Analog was designed from the ground up to be the best possible monitor controller - period!
The Grace Design m905 Analog Monitor Controller delivers all of the performance of the standard , only without the built in DAC. With stunning sonic performance and timeless design, the Grace Design m905 is a mark of genuine progress in the pursuit of high quality audio production. Intuitive, reliable and beautiful, it is the perfect studio centerpiece - home base for your ears, eyes and hands. This system is offered for users who already have an investment in DACs, whether stand-alone or built into their interface. The Grace Design m905 system configuration is exactly the same, with all the same great monitoring features, except no digital inputs and an second pair of balanced analog inputs. The Grace Design m905 Analog brings this world class performance into reach of almost any engineer or recording studio. Also, users can always upgrade their Grace Design m905 Analog to the Digital version at anytime.
2U Rack Mount MainframeAll main audio and power supply circuitry is housed in a 2U rack mount mainframe, while system control is managed by a sleek, ergonomic remote control unit. This new RCU is a combination of dedicated hardware and a color graphical LCD display. All primary monitoring features are accessed via hardware switches and a rotary encoder, while all system information is presented by the graphic LCD and illuminated switches. This hybrid design allows for the solid feel and function of traditional hardware with the added power and functionality of a graphical user interface.
The GUIThe GUI is designed so that any engineer unfamiliar with the Grace Design m905 can use the system immediately and confidently. Then with a minimal time investment, advanced functions can be accessed and controlled with ease. Additional features include: naming individual inputs and speaker outputs, calibrating level offsets of any input and output, setting preset levels, and much more. The setup menus only ever drill down one level, so the main operating screen is always one button away. And when returning to any previously visited setup menu, its previous edit status is remembered, keeping redundant navigation and editing to a minimum.
Special NoteThe Grace Design m905 Analog only version includes a simplified remote cable that does not carry headphone signal to the RCU. To enable the headphone output on the RCU just upgrade to the when ordering.
Grace Design m905 Analog Monitor Controller Features
Analog inputs - unbalanced, balanced, CUE, talkback mic (additional balanced input available on the m905 Analog)
Audio circuitry designed for completely transparent and musical playback performance
Hybrid RCU with hardware switches, large level encoder and graphical LCD
LCD display shows input, level, output, SPL and a full calibration menu
RCU includes built in microphone for talkback and onboard SPL meter
SPL meter features include level, peak, fast and slow modes, A & C weighting
Precision .5 dB step level control for speakers and headphones
Reference headphone amplifier circuitry, with outputs on both the RCU and ACU
Headphone Amplifer Crossfeed Circuit accurately emulates listening to speakers as in a room
Dedicated mono, dim, mute and sub mute switches
Mono mode can be set to L+R summed, L only in both channels, or R only in both channels
L solo, R solo, L-R and sub solo modes are available
3 available stereo speaker outputs, with two assignable mono sub outputs (or single stereo sub output)
Multi-mode SUB/ DAC/ METER out
SUB out mode for stereo or multiple mono subwoofer outputs
METER out mode fed by selected input signal (digital or analog), configurable with a fixed level or to follow
the monitor level
Detachable RCU tilt base
Grace Design m905 Analog Monitor Controller Specifications
ANALOG I/O:
THD+N at Maximum Volume, 1kHz, 22Hz-22kHz BW:
+20dBu Out: <0.0008%
+10dBu Out: <0.0008%
0dBu Out: <0.002%
Intermodulation Distortion SMTPE/DIN 4:1 50Hz, 7kHz:
@+20dBu Out: <0.002%
@ 0dBu Out: <0.0015%
Frequency Response:
Balanced Inputs: +/-3dB 3Hz to 1.25MHz
Unbalanced Input: +/-3dB 3Hz to 275kHz
Dynamic Range:
20-22kHz Bandwidth: 118dB
20-22kHz Bandwidth & A Weighting Filter: 121dB
Output Noise:
20-22kHz Bandwidth, at -20dB Gain: -99dBu
20-22kHz Bandwidth & A Weighting Filter, at -20dB Gain: -102dBu
Phase Deviation:
20Hz to 20kHz:
10Hz to 100kHz: < 19 Degrees
Crosstalk Any Channel:
100Hz: <104dB
1kHz: <100dB
20kHz: <79dB
Balanced Input CMRR:
60Hz: >90dB
1kHz: >85dB
10kHz: >70dB
Gain Range: -104dB to +13dB
Channel Tracking Accuracy: Any channel +/-0.1dB
Maximum Output Level: +26dBu
Maximum Input Level:
Balanced Inputs: +29dBu
Unbalanced Inputs: +21dBu
Impedances:
Balanced Inputs: 88k Ohms
Unbalanced Inputs: 53k Ohms
Balanced Outputs: 300 Ohms
Minimum Load Impedance: 300 Ohms
External Talkback Mic Preamp Gain: +7dB to +70dB in 1dB steps
Power Supply / General:
Power Consumption: 60W
Input Voltage: 50-60Hz, 100VAC - 240VAC
Dimensions:
Main Chassis IEC 2U: 3.5" x 10.5" x 17"
Remote Control Unit: 8.9" x 5.1" x 2.2"
Weight:
Main Chassis: 7.8lbs
Remote Control Unit: 2.2lbs
Grace Design m905 Analog Monitor Controller Includes
Grace Design m905 Alalog Monitor Controller
Remote Control Unit
Remote Control Tilt Base
Serial cable to connect the Controller and Remoytes
Ethernet cable
2x serial adapter jacks
Power cable
Rubber feet
Rack screws
Owner's manual and warranty registration
Manufacturer Warranty
PriceC$4,937.83
+ C$58.84 Shipping
C$29.41 shipping when combined
14-Day Return Policy
Enjoy peace of mind with your new gear
