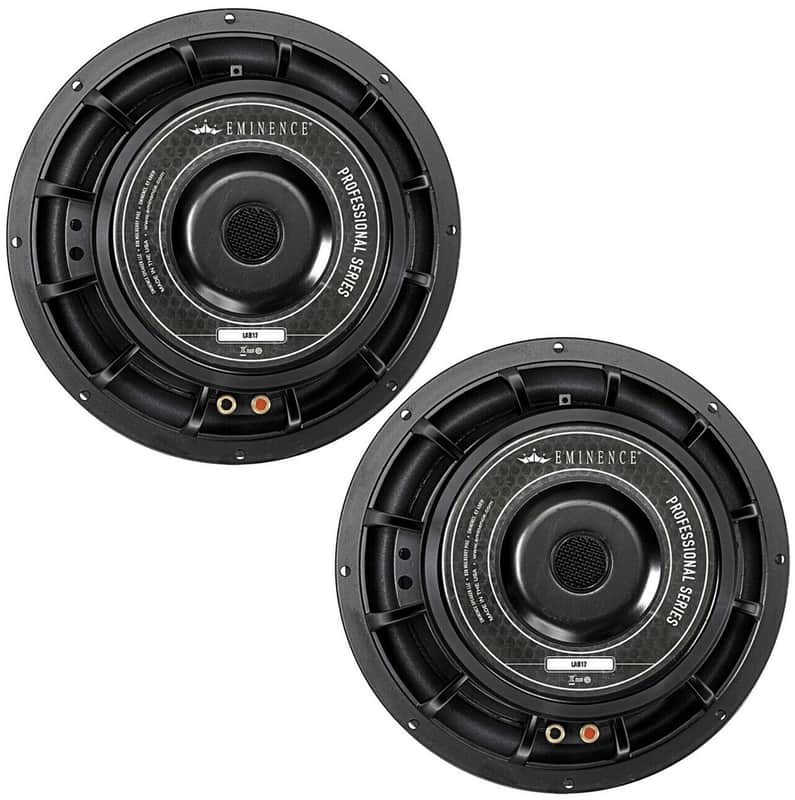

Eminence LA12850 LA Pro 12" 800-Watt 8 Ohm Midbass

Brooklyn, NY, United States

About this listing

Eminence LAB 12 Professional High Power 12" Subwoofer 800 Watts Car Audio Sub.Recommended for vented, sealed, and horn loaded, professional audio enclosures as a subwoofer. Also great as an automotive sub.ApplicationsSubwoofer | Pro Audio | Car Audio | Home Stereo | Home Theater Box Type: Sealed | Vented | Horn LoadingSPECIFICATION Nominal Basket Diameter 12", 305 mm Nominal Impedance* 6 ΩPower Rating* Program Power 800 W Watts 400 W Resonance 22 Hz Usable Frequency Range 25 Hz - 0.1 kHz Sensitivity* 89.2 dB Magnet Weight 160 oz. Gap Height 0.375", 9.5 mm Voice Coil Diameter 2.5", 64 mmTHIELE & SMALL PARAMETERS Resonant Frequency (fs) 22 Hz DC Resistance (Re) 4.29 Ω Coil Inductance (Le) 1.48m H Mechanical Q (Qms) 13.32 Electromagnetic Q (Qes) 0.39 Total Q (Qts) 0.38 Compliance Equivalent Volume (Vas) 125.2 liters / 4.42 cu.ft. Peak Diaphragm Displacement Volume (Vd) 659 cc Mechanical Compliance of Suspension (Cms) 0.35 mm/N BL Product (BL) 15 T-M Diaphragm Mass Inc. Airload (MMs) 146 grams Efficiency Bandwidth Product (EBP) 56 Maximum Linear Excursion (Xmax) 13 mm Surface Area of Cone (Sd) 506.7 cm2 Maximum Mechanical Limit (Xlim) 22 mmMOUNTING INFORMATIONRecommended Enclosure Volume Sealed 22.7-28.3 liters / 0.8-1 cu.ft. Vented 45.3-101.9 liters / 1.6-3.6 cu.ft. Driver Volume Displaced 0.109 cu.ft. / 3.09 liters Overall Diameter 12.32", 312.9 mm Baffle Hole Diameter 11.04", 280.4 mm Front Sealing Gasket Yes Rear Sealing Gasket N/A Mounting Holes Diameter 0.26", 6.6mm Mounting Holes B.C.D. 11.77", 299mm Depth 6.44", 163.6 mm Net Weight 22 lbs, 9.98 kg Shipping Weight 23.8 lbs, 10.8 kgsMATERIALS OF CONSTRUCTION Coil Construction Copper voice coil Coil Former Polyimide former Magnet Composition Double stacked 80 oz. ferrite magnets Core Details Vented and extended core Basket Materials 12-spoke die-cast aluminum basket Cone Composition Kevlar-reinforced paper cone Cone Edge Composition Foam cone edge Dust Cap Composition Dual inverted dust caps

View Full Listing

$519.98

Free Shipping
