8-Input Universal Synth & DAW Summing Mixer - LittleOne 8x4 Vol Control - Customizable!

New! 8-Input Mini Studio Summing Mixer – Why Choose VintageMaker?

• Designed for Your Studio!
• Built for your studio—fits perfectly with your preamp, synth, and DAW interface working range.

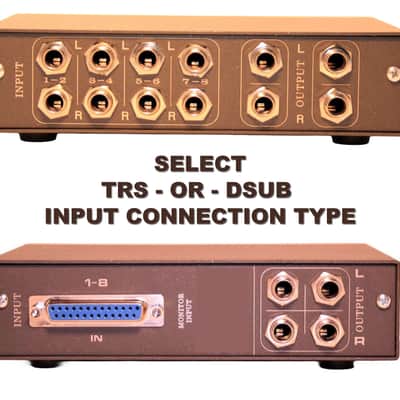

• Customizable input and output connectors: XLR, TRS, or DSUB.
• Need more or fewer input channels? No problem! Just let me know.
• Need more output channels? Main Rec, Monitor Out, VU Meter Out, or more? Just ask!
• Want more or fewer mono input switches or input mute switches? Just ask for it!
• Ultra-low noise, excellent SNR, and headroom.
• Handmade, unique, and custom-crafted, using selected Vishay Dale military resistors.
• Fully stereo balanced, and also accepts unbalanced signals.
• 🎁 Bonus: Free custom name engraving! (Just let me know.)

Universal Studio Summing Mixer – compatible with all studio audio interfaces (UAD, Focusrite, MOTU, RME, Apogee, SSL, etc.) and DAWs like Pro Tools, Logic, Ableton, Cubase, FL Studio, and more.

Additionally, Synths, Keyboards, Drum Machines, and Samplers can be connected either independently or together with the DAW.

Dual-Stereo, Fully Balanced, Discrete Analog Summing Mixer – Designed for Your Studio DAW Interface! (Let me know yours!)

Pro Tip: Push the instruments into the summing mixer at a higher level until you start hearing a subtle pleasant harmonic distortion. This will add warmth, depth, and better separation to your mix, giving it a more professional, polished sound—just like a finished record. The headroom provides a safe place for transients, ensuring clarity and punch in your mix.

🔄 DIR (Direct) Input to Output or Mixer Switch:

• ⬇️ Down Position: Standard summing mixer input with resistor attenuation for analog mixing.
• ⬆️ Up Position: Bypasses summing mode input by sending the 7/8 input signal directly to the master outputs (no summing attenuation). Route your DAW interface’s monitor out signal straight through the direct input to output.
• Keep your interface monitor connected at all times—no need to unplug during daily use!

🎛️ Inputs & Outputs:

• 8 input TRS 1/4 Balanced L/R – 4 stereo channels
• 4 output TRS 1/4 balanced – 2 x Stereo (Main Rec / Monitor)
• 2 x Mono Input conversion to 2 Center placed Mono (e.g. mono kick/bass)

📏 Attenuator & Summing:

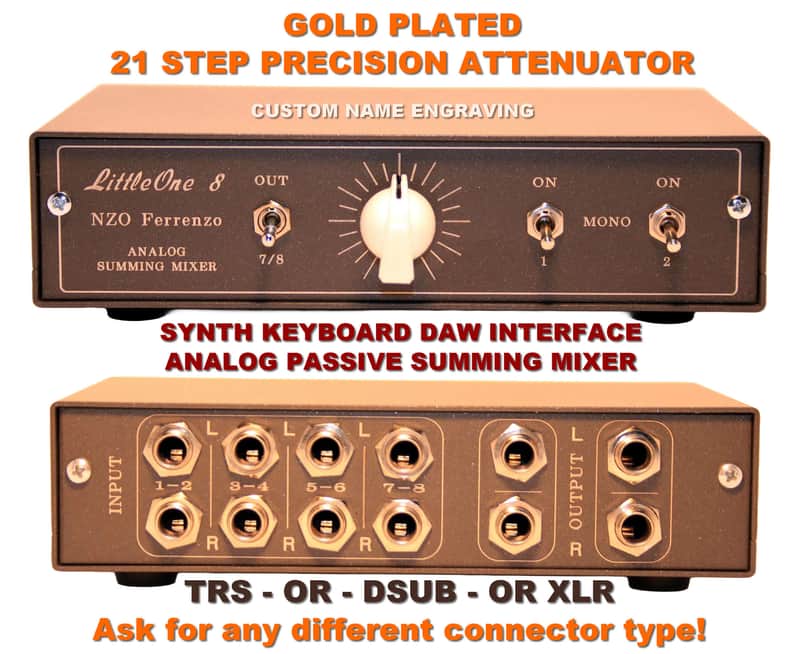

• 21 step precision Attenuator range – 20dB placed before Master Out
• Base SUM BUS Reduction: -10dB (ask for other value)
• Attenuator (+) – 0 to -20dB divided into 21 Steps
  Example: Base reduction -10dB (+) -20dB Attenuator range
  You can ask for -6 to -10, -15, -20 or -25dB base reduction
• DIRECT Input to Output Switch on 7/8 Input (placed before or after attenuator – let me know!)

📝 Custom Options:

• Custom Name Engraving (let me know)
• Required minimum gain makeup: +6dB up to +25dB relative to 0dB

🔧 Components & Build Quality:

• Selected VISHAY DALE military metal-film resistors
• Full discrete dual stereo signal topology
• In/Out: Balanced, floating to ground
• Output impedance: 600–1k ohms balanced
• Output level: -10 dB / – 30dB nominal
• Frequency response: 0–500kHz
• Crosstalk 1kHz: -95dB
• Signal/Noise ratio: -110dB
• TRS wiring: Tip = HOT, Ring = COLD, Sleeve = GROUND

🛠️ Handmade Excellence:

• Pure hand made! Hand wired and tested point-to-point!
• Laser engraved massive aluminium alloy box!
• Knob Style: Round black or Miniature Vintage Style White / Black knob

PLEASE NOTE!

Production time is about 8 working weekdays after payment received!

Shipping from Hungary with GLS or FedEx insured parcel

ONLY FOR ORDER!

*This item is sold "As-Described":
🔹 This means no returns for reasons like "I changed my mind" or "it doesn’t fit my needs."
🔹 The item can only be returned if it doesn’t match the description you provided in the listing (for example: damage not disclosed, missing parts, or functional issues not mentioned).
