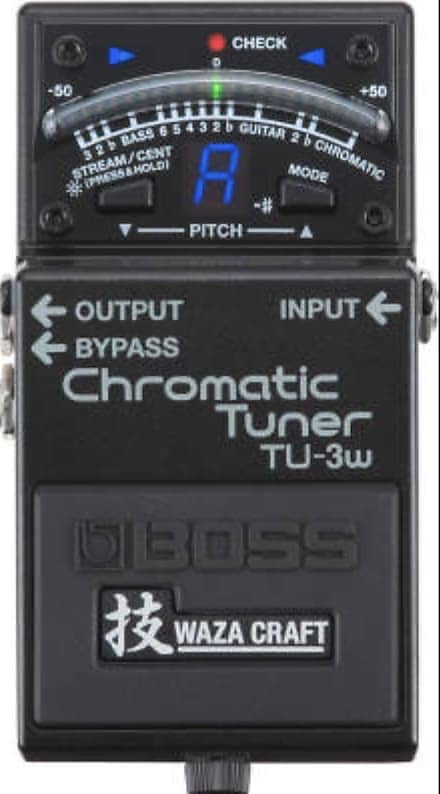

The World’s Best Tuner Pedal, Improved by Waza Innovation and Expertise

Optimal Tuning and Premium Signal Buffer in the Same Pedal

Same Tuning Functions as the Industry-Leading TU-3

Enhanced Audio Circuitry for Exceptional Signal Transparency

Buffer Can Be Turned Off to Switch to True Bypass Mode

5-Year BOSS Warranty

SPECIFICATIONS

Tuning Range: C0 (16.35 Hz) to C8 (4.186 Hz)

Reference Notes: A4 = 436 to 445 Hz (1 Hz Steps)

Tuning Accuracy: +/- 1 cent

Tuning Modes: Chromatic

Chromatic flat x2

Guitar

Guitar flat x2

Bass

Bass flat x3

Display Modes: Cent Mode

Stream Mode

Power Supply: Battery alkaline (9V, 6LR61) or carbon-zinc battery (9V, 6F22)

AC adapter (sold separately)

Bypass: By Buffer or True Bypass

Controllers: Foot switch

OUTPUT switch (BUF/THRU SW)

MODE button

STREAM/CENT button

Nominal input level-20 dBu

Input impedance1 M ohm

Nominal output level-20 dBu

Output impedance1 k ohm

Recommended load impedance10 k ohms or more

Indicator: CHECK indicator (power indicator)

ConnectorsINPUT jack

OUTPUT jack

DC IN jack

DC OUT jack

Rating; 60 mA (DC 9 V), 110 mA (DC 9 V, in high brightness mode)

Continuous use battery life (These figures may vary depending on the conditions of use)Alkaline: Approx. 6 hours

Carbon: Approx. 0.5 hours

Accessories: User Manual

Brochures ("USING THE EQUIPMENT SAFELY" "IMPORTANT NOTE" and "Information")

Alkaline battery (9V, 6LR61)

Options (sold separately): AC adapter: PSA series

Parallel power cord: PCS-20A (DC Plug x8)

DIMENSIONS AND WEIGHT

Width73 mm

Depth129 mm

Height59 mm

Weight (including batteries)460 g

• 0 dBu = 0.775 Vrms
