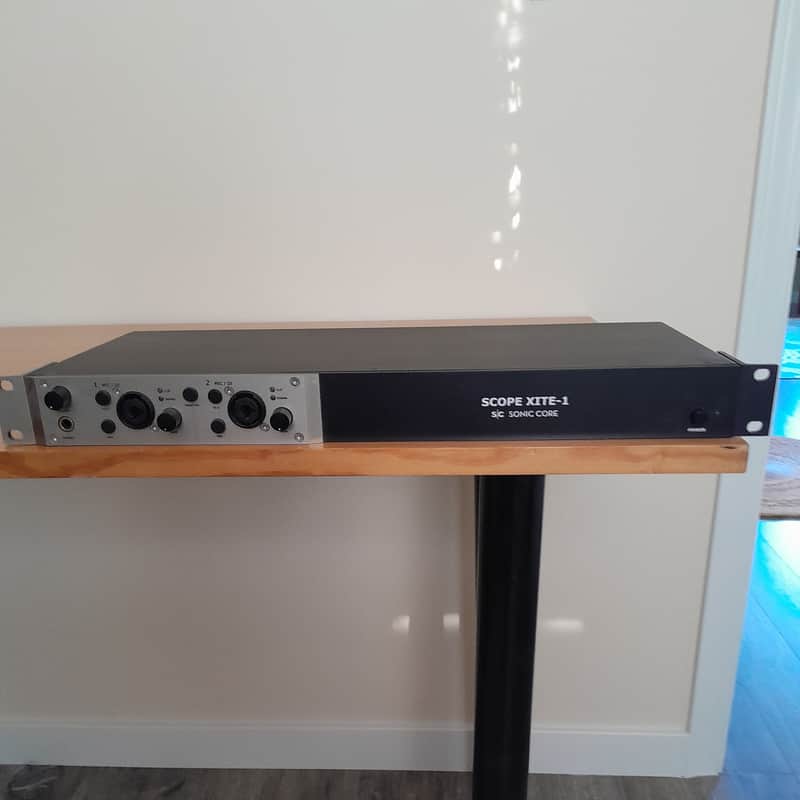

Sonic Core Xite 1

SCOPE XITE-1 is DSP hardware that is controlled by the SCOPE software via  a computer. According to its flexible concept, XITE-1 can be configured as a digital production studio.

With its high-quality inputs and outputs, XITE-1 is a low-latency audio interface for your DAW.

With 18 SHARC processors it offers an unmatched flexible latency-free DSP solution.

• As a sound engine, XITE-1 has a variety of vintage and new innovative synthesizers
• XITE-1 is a multi-effect device with high-end studio Plug-Ins.

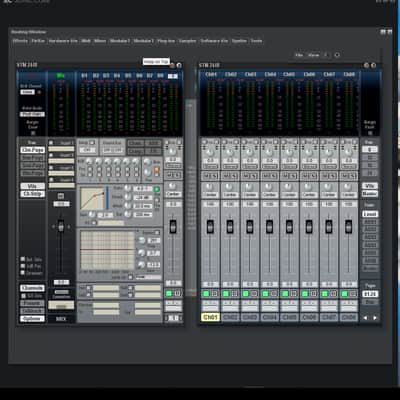

• Various mixers and mastering Plug-Ins complement the possibilities of latency-free production.

FEATURES:

• 18 SHARC DSP Processors
• 32 Bit-Audio (Internal Word Length: > 80 Bit), 44.1 kHz to 96 kHz
• Basic Equipment: 20 Instruments, 150 Effects, MODULAR III, 6 Mixers and various Tools

Included Virtual Studio Equipment:

SCOPE Application Software V7
Synth Legends Bundle
Classic Mix’n’Master Bundle
Classic Synth’n’Sampler Bundle
MODULAR III

System Requirements:

System Requirements:

PCIe Slot (PC) or ExpressCard Slot (Notebook)
Windows 7-11 32bit or 64bit

Device:

• Rack Unit 19″/1HE
• Dimensions (without rack brackets): 445 x 192 x 45 (mm/W x L x H)
• Weight: 5.1 kg
• Connection to PC: PCIe Card

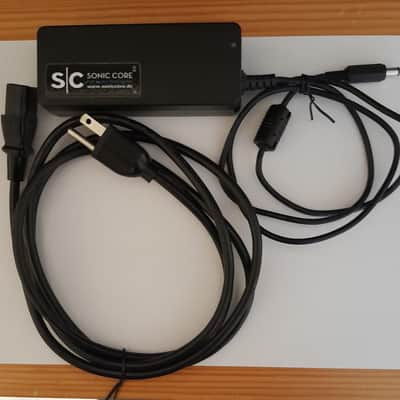

• 12V external Power Supply

Front Inputs and Outputs:

• 1 x Headphone (Stereo Jack)
• 2 x Instrument/Mic/Line Inputs (XLR/Mono Jack), Phantom Power, Impedance Transformer, variable Gain

Rear Inputs and Outputs:

• 2 x ADAT optical (16 Channels, 8 Channels SMUX at 96kHz)
• 2 x Z-Link (16 Channels at 96 kHz)
• 1 x Analog Input and Output (XLR symmetric, +4 dBu)
• 1 x Stereo AES/EBU Input and Output
• 1 x MIDI In, Out und Thru
• 1 x Word Clock Input and Output (BNC)
• 1 x XTDM Expansion Slot
• PCIe Connection (HDMI Cable to PC/Notebook)
