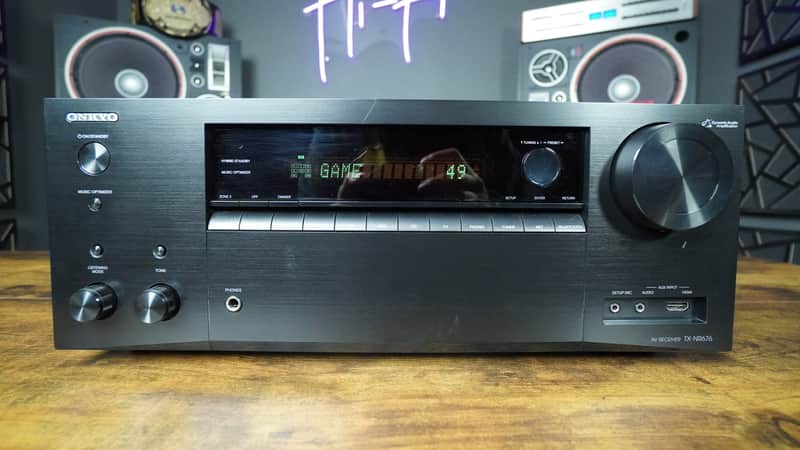

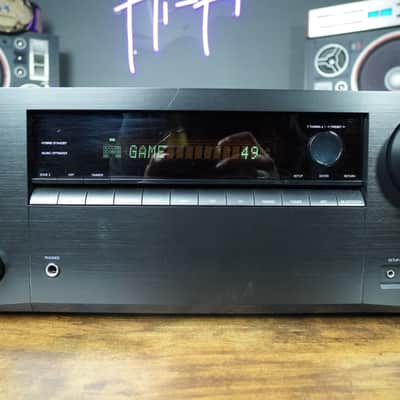

Onkyo TX-NR676 (100W/Ch)

Fully Cleaned and Tested

Power and Processing:

• 7-channel amplifier
• 100 watts per channel into 8 ohms (20-20,000 Hz) at .08% THD, with 2 channels driven
• Dolby® and DTS® surround sound decoding
  • Dolby Atmos® processing for use with in-ceiling or "height" speakers for more enveloping surround sound
  • DTS:X™ for an immersive, 3-dimensional soundstage
• Advanced AccuEQ automatic speaker calibration optimizes your system's sound for your room (microphone included)
  • new AccuReflex technology aligns phase of up-firing "height" speakers with the sound coming directly from your other speakers

Digital and Streaming Music Options:

• built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
  • includes support for Pandora®, Spotify®, TIDAL, Deezer, and TuneIn (subscription required for some services)
• Chromecast built-in for streaming music from the cloud with compatible mobile apps (via firmware update)
• built-in Bluetooth for wireless music streaming from a compatible phone, tablet, or computer
• Apple® AirPlay® for streaming music from an iPhone®, iPad®, iPod touch®, or computer running iTunes®
• plays high-resolution digital music files via USB storage device or a networked computer (PCM-based files up to 24-bit/192kHz resolution)
• plays DSD files (up to 5.6 MHz) from network and USB storage devices
• DTS Play-Fi® available via future firmware update

Multi-room Audio:

• dual-room/dual-source output
  • powered stereo audio output for 2nd room
  • using powered 2nd-room output allows 5.2-channel home theater in main room
  • line-level 2nd-room output for use with a separate amplifier or powered speakers

Audio Performance Features:

• high-current amplifier design
• 32-bit/384kHz Asahi Kasei AK4458 digital-to-analog converter for clear sound from digital sources
• Music Optimizer function enhances the sound quality of compressed music files and Bluetooth streams
• bi-amp capability with compatible front speakers by reassigning surround back channels

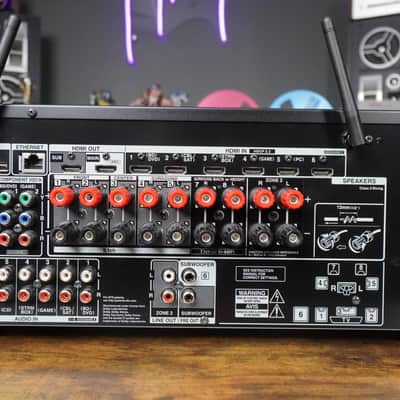

Connections:

• HDMI audio/video switching: 7 in, 2 out (includes front-panel input)
  • HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs (all HDMI inputs and monitor output)
  • HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
• supports HDR 10 and Dolby Vision
• 2 component video inputs
• 2 composite video inputs
• digital audio inputs: 2 optical and 1 coaxial
• 6 analog stereo audio inputs
• phono input for direct connection of a turntable
• preamp outputs for 2 powered subwoofers
• rear-panel USB port for audio playback from USB storage devices
• Ethernet port for network connection
• outputs for 9 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Zone 2 L/R)
