Tascam DA-30 MKII Professional DAT Recorder
Tascam DA-30 MKII Professional DAT Recorder: Description
Digital - Rear Panel - AES/EBU on XLR, SPDIF on 1x RCA Phono
Remote input on 15-pin DSub - gives remote control of transport functionsOutputsAnalogue - Rear Panel - 2x XLR, 2x RCA Phono
Front Panel - Headphone output on 1/4" Jack
Digital - Rear Panel - AES/EBU on XLR, SPDIF on 1x RCA PhonoTransport
ID Select - selects which ID marker is current
Position - enables you to accurately position a marker with the FF rewind buttons
Execute - Writes the current ID marker
Renumber - labels each Start ID with its own programme number
Auto ID - automatically inserts a start ID each time a silent section followed by signal occurs during recording.
Memo - stores the current absolute time in a single memory
Locate - locates the DA30 to the time in the memory.
Input Level Pots - one for each channel
Fs - Selects recording sampling frequency - 44.1k or 48kFeatures- Comprehensive ID markers
- Peak Level Meters, with digital Peak Hold Meter
- 19" rack mountWeight8.5kg
Tascam DA-30 MKII Professional DAT Recorder: Description
- High performance 1-bit type AD/DA system
- Multiple sampling rates supported
- Long record/play mode allowing recording/playback up to 4 hours
- CAL/UNCAL switch in the analog input
- Parallel port for external control
- Shuttle and autolocation
- Selectable AUTO ID sensitivity level
- Mountable in a 19" EIA rack
- Selectable Copy ID
- Two pairs of digital input and output : both consumer SPDIF and professional AES/EBU
- Both XLR balanced and RCA unbalanced analog input and output
Specifications

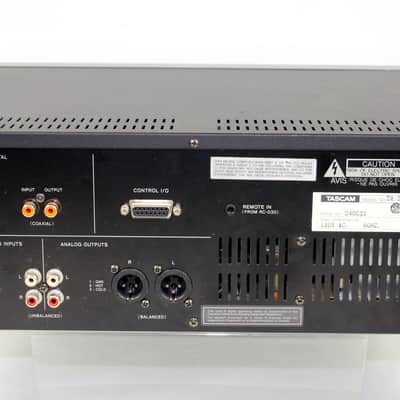

InputsAnalogue - Rear Panel - 2x XLR, 2x RCA PhonoDigital - Rear Panel - AES/EBU on XLR, SPDIF on 1x RCA Phono
Remote input on 15-pin DSub - gives remote control of transport functionsOutputsAnalogue - Rear Panel - 2x XLR, 2x RCA Phono
Front Panel - Headphone output on 1/4" Jack
Digital - Rear Panel - AES/EBU on XLR, SPDIF on 1x RCA PhonoTransport
Play, Pause, Record, Stop, Rewind, Fast Forward, and Skip Tracks
Controls
Data/Shuttle WheelID Select - selects which ID marker is current
Position - enables you to accurately position a marker with the FF rewind buttons
Execute - Writes the current ID marker
Renumber - labels each Start ID with its own programme number
Auto ID - automatically inserts a start ID each time a silent section followed by signal occurs during recording.
Memo - stores the current absolute time in a single memory
Locate - locates the DA30 to the time in the memory.
Input Level Pots - one for each channel
Fs - Selects recording sampling frequency - 44.1k or 48kFeatures- Comprehensive ID markers
- Peak Level Meters, with digital Peak Hold Meter
- 19" rack mountWeight8.5kg
For an in depth review of the Tascam DA30 MKII go to this web site:

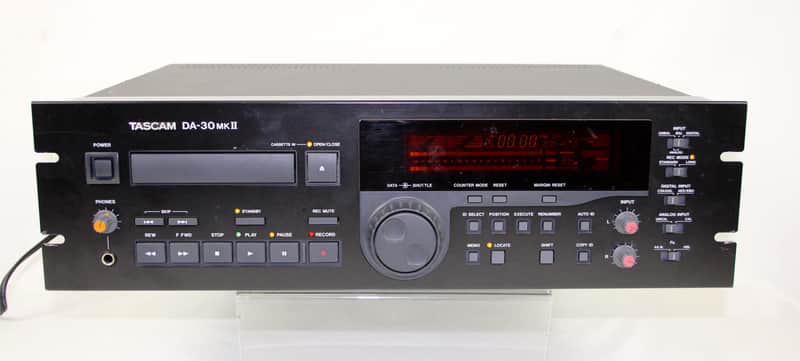

This Tascam DAT recorder was lightly used in a smoke free personal project studio. This unit is in excellent working and cosmetic condition (see included pictures) and has very little usage. All it's functions have been tested and work correctly. The unit includes the original power cable, documentation and all packaging.
