Shure FP32

This used Shure FP32 Portable Stereo Mixer has one channel that does not work and comes with a Power Adapter.

Condition:

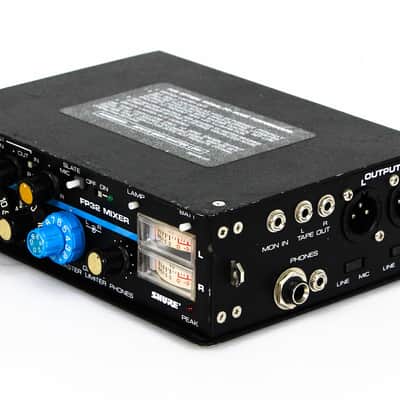

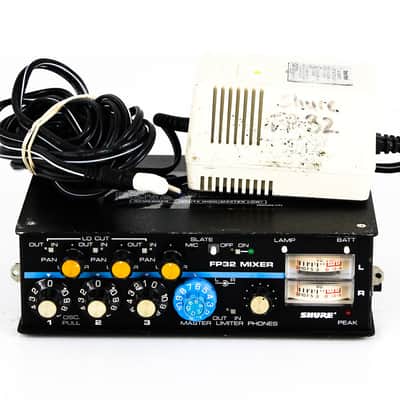

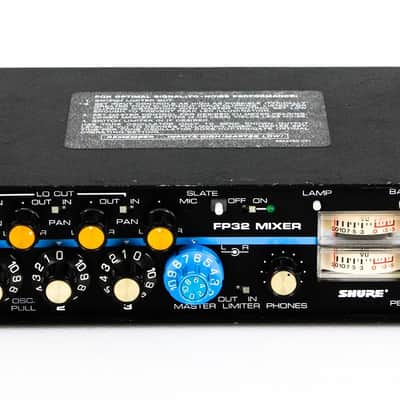

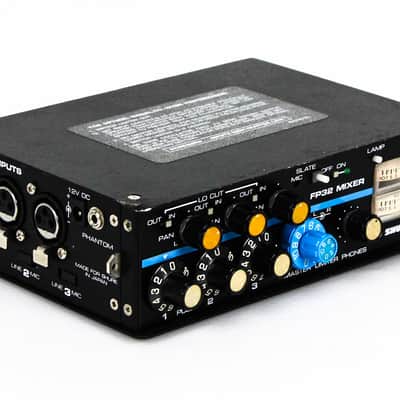

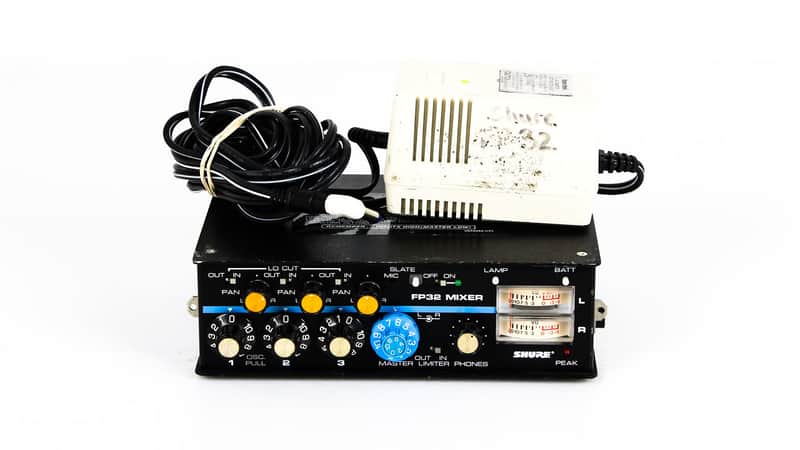

Channel 3 does not work on this unit. The other two channels work great, and you still get a great stereo mixer with this unit. This mixer is in good condition with normal wear. Please see pictures for details on item condition.

Product Details:
The FP32 is a portable stereo mixer for electronic news gathering, electric field production, or film production. This very small mixer provides all the most needed features and quality for professional stereo broadcast remotes.

• Inputs:
  • Three transformer-coupled, 3-socket XLR-connector inputs; each switchable to low-impedance microphone or line level
  • Phantom (simplex) or A-B(T) power for condenser microphones available at each microphone input
  • Built-in tone oscillator for level checks or line tests
  • Slate microphone with automatic gain control (AGC) for take identification or for emergency use
  • Slate tone for identifying take locations during editing
  • Stereo monitor input for headphone listening to external signal with no interruption of broadcast or taping function of mixer
• Outputs:
  • Transformer coupled, Left and Right 3-pin XLR-connector outputs, each switchable either to low-impedance balanced microphone or to 600-ohm balanced line-level
  • Left and Right tape outputs to feed tape recorder inputs or other unbalanced Aux-level inputs
  • Two stereo headphone jacks (8 to 2,000 ohms, 1/4-inch and 3.4 mm jacks) driven by stereo headphone power amplifier with separate phones level control. Either or both jacks can drive Aux or unbalanced line-level inputs.
• Controls & Indicators:
  • Active-feedback-type input gain controls permit direct input of high-level sources without input attenuators
  • Pan pots, with center detent, for each input permit infinitely variable assignment of input signals to left or right outputs
  • Lo-Cut filters available at each input to reduce extraneous low-frequency interference
  • Built-in Limiter with adjustable threshold - prevents output clipping of mixer or input overload of amplifier, telephone line, or tape deck
  • LED indicator flashes during Limiter operation or to signal overload with Limiter defeated
  • Professional dual VU meters for Left and Right channels, factory set for 0 VU = +4 dBm, internally adjustable for other VU levels
  • VU lamp, stays illuminated while push button is depressed, automatic 4-second turnoff after button is released
  • Battery check function with readout on VU meter
  • Dual clutched Master gain control for individually adjustable or tracking Left and Right levels at Lin/Mic and Tape outputs, as well as Tone Oscillator and Slate Mic levels
  • Phone level control adjusts output at both headphone jacks
• Power:
  • Mixer is powered by two (2) standard 9V alkaline batteries that also supply phantom power for condenser microphones
  • Phantom power input jack for use with external phantom supply
  • Extremely low battery drain provides 6-hour minimum battery life under normal conditions
  • Separate 9V alkaline battery supplies A-B power for condenser microphones; third battery is not required if A-B power is not used
  • Spring-loaded battery compartment prevents incorrect insertion of batteries; batteries available for replacement instantly when compartment door is opened
  • Mixer can be externally powered from any 11 to 18 Vdc source such as: battery belt pack, automotive electrical system, video tape recorder, or low-ripple ac power converter
