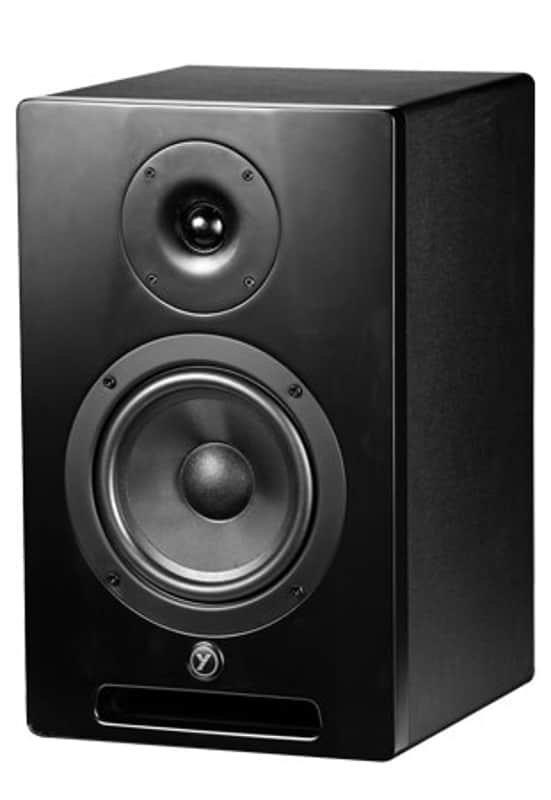

YORKVILLE YSM6

68w, 6.5-inch woofer

The Yorkville YSM6 is the ideal workhorse monitor for any home or project studio. The 6.5-inch woofer and 1-inch soft dome tweeter deliver precise reproduction and a large sweet spot for listening in larger spaces. A solid ¾-inch MDF cabinet with reinforced bracing reduces rumble and the contoured baffle virtually eliminates cabinet self-interference. The front facing port design solves the issue of bass coupling with back walls and corners in smaller studio environments which can generate false low-frequency information in your mix.

• Reproduces source material with near pinpoint accuracy and detail
• Contoured MDF baffle engineered to minimize front face reflections
• Front facing port design eliminates bass coupling with back walls and corners in imperfect listening environments
• Improved phase response provides a wider 'sweet spot' in the listening position
• Strategic bracing and ample internal dampening eliminates unwanted low frequency rumble
• Biamplified Power Module (50 watts woofer / 18 watts tweeter)
• Custom designed soft dome tweeter
• High quality low frequency 6.5-inch woofer
• Rock-solid 3/4-inch MDF cabinet construction
• XLR and ¼-inch TRS balanced inputs
• 4-position high and low frequency trim controls to optimize response for recording space
• Front mounted power switch for added convenience
• Compatible with virtually any source, Yorkville YSM6 has a widely variable input trim control making it compatible with any source from direct connection to a soundcard, or connection to a professional console control room output. Four position high and low frequency trim controls (at -2, -1, 0 and +1.5dB) allow user adjustable EQ contour to compensate for speaker placement in less than perfect listening spaces.
• System Type 2-Way Active or Passive Active Program Power (Watts) 68 Biampable Self Powered Biamp Operation Only Yes Max SPL (dB) 105 Frequency Response (Hz +/- 3db) 50-20,000 Crossover Frequency (Hz) 2600 HF Driver(s) 1 inch Neodymium soft-dome tweeter HF Program Power (Watts) 18 LF Driver(s) 6.5 inch Composite woofer LF Program Power (Watts) 50 LF Protection Thermal / Current Limit HF Distortion 0.0008 LF Distortion 0.0002 Inputs 1 Combi-Jack Mixer Controls HF Trim (-2,-1, 0,+1dB) 4-position preset
  LF Trim (-2,-1, 0,+1.5dB) 4-position preset Level Controls Input Gain Enclosure Materials MDF Baffle Material MDF Port(s) Yes - Front Dimensions (DWH xbackW, inches) 10 x 9.5 x 15 Dimensions (DWH xbackW, cm) 25 x 24 x 38 Weight (lbs/kg) 21 / 9.5
