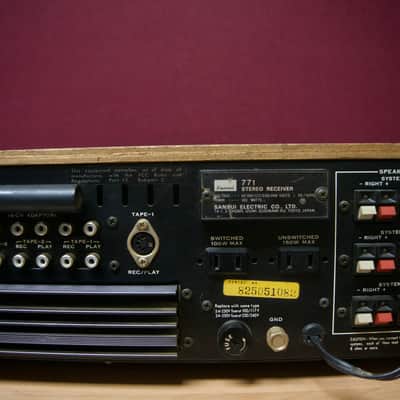

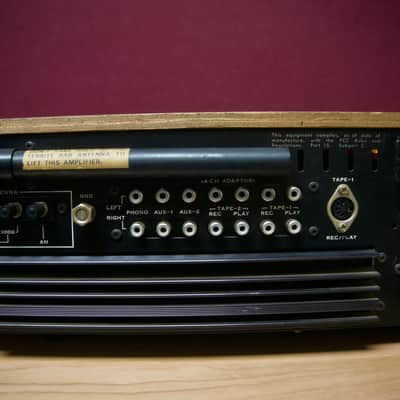

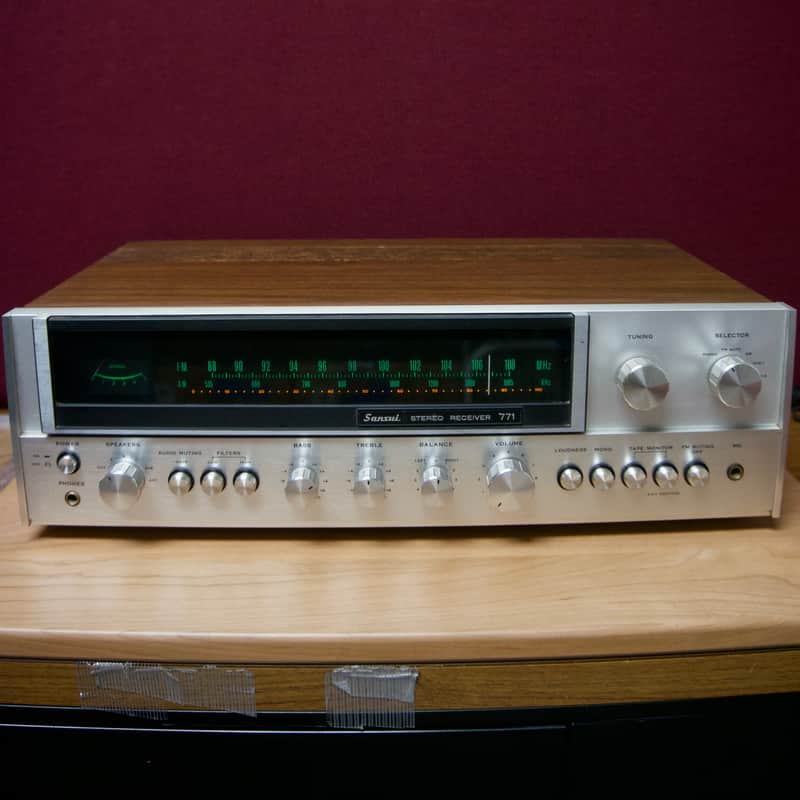

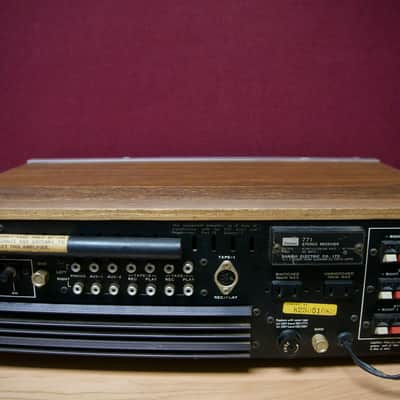

Sansui 771 Stereo Receiver - 32 Watts Per Channel

This gorgeous Sansui 771 receiver was manufactured in the early to mid 1970s and outputs 32 watts per channel. In addition to several analog audio inputs it also has a very good phono stage and tape loop.

The amp has been fully serviced with almost $100 in repairs done to it. The 771 is in perfect working order and is completely functional. The chassis and faceplate are in excellent condition with no deep scratches or dings.

The Sansui 771 will be well packed and shipped fully insured through UPS.

Thanks to its refined Circuit Board Module construction, the Sansui 771 outperforms many higher priced receivers in the field.

It offers a very superior power amplifier, an all-stage direct coupled OCL powerhouse delivering a continuous 40wpc to drive up to two pairs of speakers at a time.

The preamplifier section and control sections are equally outstanding, providing inputs and controls for two tape decks, two aux, a microphone circuit, a phono circuit and an FM multiplex circuit.

Specifications

Tuning range: FM, MW
Power output: 32 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 30kHz
Total harmonic distortion: 0.5%
Damping factor: 60
Input sensitivity: 2.5mV (mic), 2.5mV (MM), 100mV (DIN), 100mV (line)
Signal to noise ratio: 70dB (MM), 80dB (line)
Channel separation: 45dB (MM), 45dB (line)
Output: 100mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 3 x FET, 3 x IC, 49 x transistors, 25 x diodes, 4 x zener diodes
Dimensions: 480 x 135 x 300mm
Weight: 12kg
Year: 1973
