About this listing

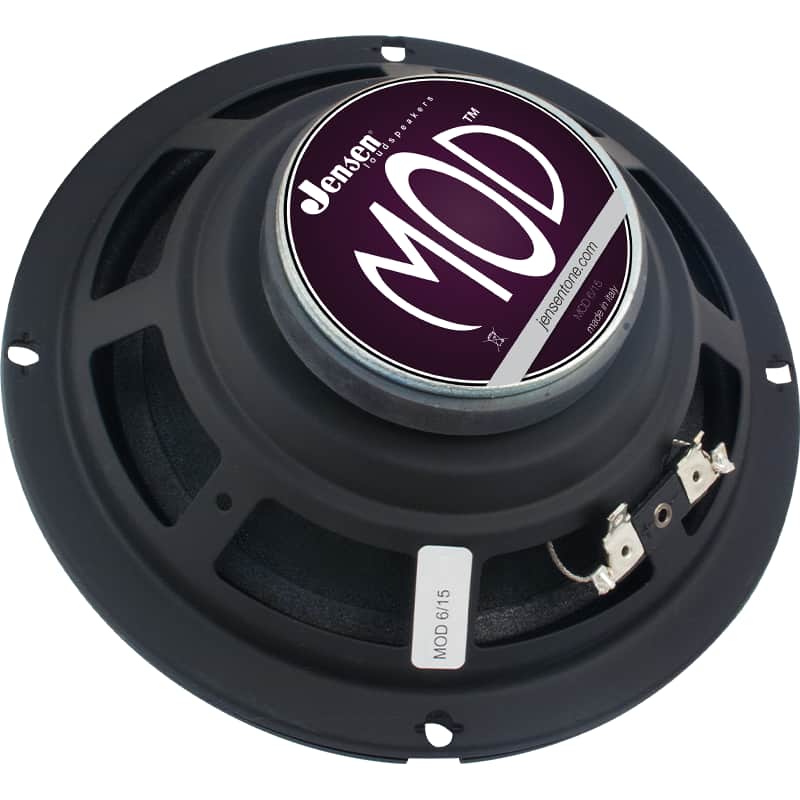

The Mod 6-15 is a 6" ferrite speaker with 15 watts of power. It is a good upgrade for small practice amps.
Guitarist Description: A good upgrade for small practice amps.
Product MeasurementsDiameter: 6 in.Voice Coil Diameter: 0.75 in.Depth: 2.45 in.Outer Diameter: 6.53 in.Inner Diameter: 5.59 in.Mounting Hole Bolt Circle Diameter: 6.1 in.Magnet Assembly Diameter: 2.83 in.Magnet Assembly Depth: 0.71 in.Mounting Hole Diameter: 0.2 in.Nominal Overall Diameter: 165.00 mmNominal Voice Coil Diameter: 20.00 mmFlux Density: 1.10 TMagnet Type: FerriteVoice Coil Winding Type: CopperVoice Coil Former: EpotexCone Material: PaperSurround Material: FoamDust Dome Material: Solid PaperBasket Material: Pressed Sheet SteelVoice Coil DC Resistance (Re): 3.00 ΩResonance Frequency (ƒS): 91.00 HzMechanical Q Factor (QMS): 8.06Total Q Factor (QTS): 1.19Mechanical Moving Mass (MMS): 5.50 gMechanical Compliance (CMS): 552.00 µm/NForce Factor (BxL): 2.68 Wb/mEquivalent Acoustic Volume (VAS): 11.70 litersLinear Displacement, maximum (XMAX): 0.50 mmReference Efficiency (nO): 0.61 %Diaphragm Area (SD): 122.70 cm2Losses Electrical Resistance (RES): 18.00 ΩVoice Coil Inductance @ 1 kHZ (LE): 0.16 mHRated Power: 15.00 WMusical Power: 30.00 WSensitivity @ 1W, 1m: 90.90 dB
Price$41.70
Free Shipping
Free Shipping
from Tempe, AZ
30-Day Return Policy
Enjoy peace of mind with your new gear
1
10+ in stock
