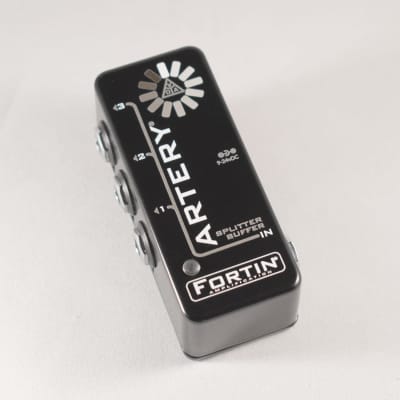

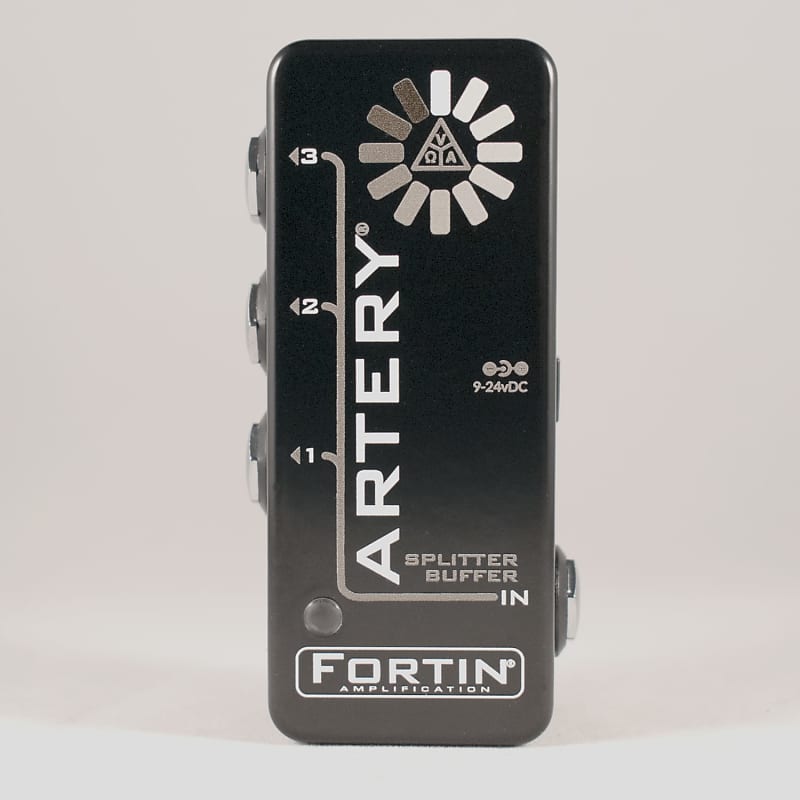

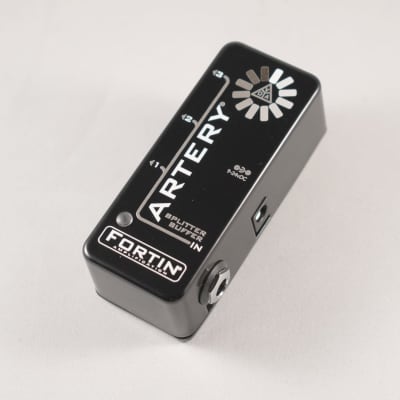

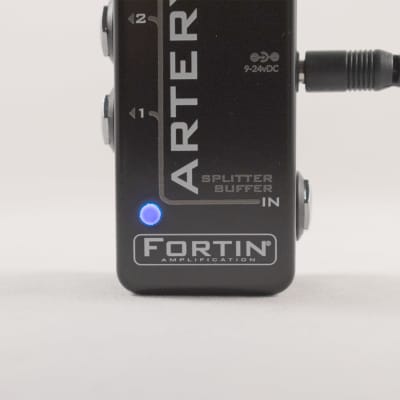

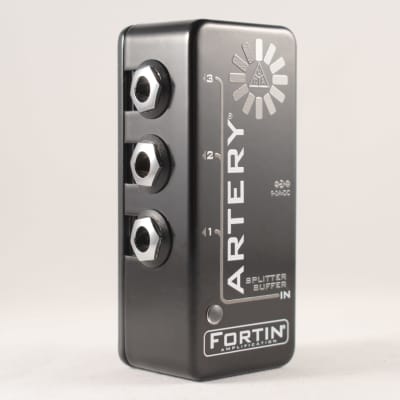

Artery - Splitter / Buffer

The ARTERY (formally called Roach), is a 3-way signal splitter with discrete Class-A buffers. Putting the ARTERY before and after your pedal board reinstates your tone and removes all the top end loss (capacitance) that running a board full of true bypass pedals will inflict on your tone.

With 3 outputs, the ARTERY is the perfect companion for the Mini ZUUL® or ZUUL®+, just plug in one of the outputs to the ‘Key In’ on the ZUUL® and your original, clean, guitar signal will be the one controlling the ZUUL®. A mind blowing amount of options are available to you with the ARTERY, not only can you trigger your gate, but you can send one signal to your amp and another to the interface so you are recording the signal before it hits amp saturation - with this additional control, you can re-amp the guitar afterwards to ensure it is sitting perfectly in your mix. You can also run multiple amps simultaneously, making your tone bigger than it has ever sounded.

The ARTERY is an exceptionally low-current circuit and runs on an external power supply via the DC inlet, between 9-24VDC.

Mosfet protection if the wrong orientation adapter is connected to the DC inlet, no more damage internally (the pedal will not power up).
Built in U.S.A.;

• Highest grade materials selected for superior sound, response and reliability;
• Input ~1M / Output ~10k min load;
• Frequency response: 20hz to 20khz;
• Max output: +9dBm(9VDC), +18dBm(24VDC;
• 9v-24vDC center-pin negative (fully regulated) external adapter/power supply only (not included);
• Power draw: 4mA
• Pedal Dimensions (W/D/H): 3.6” x 1.5” x 1.2” (92mm x 38mm x 31mm) excluding knobs and switches;
• Shipping Weight: 360g;
• Includes Fortin’s limited 1-year warranty;
• Ships globally – all published prices are USD
