Identity of L/i50 Cable

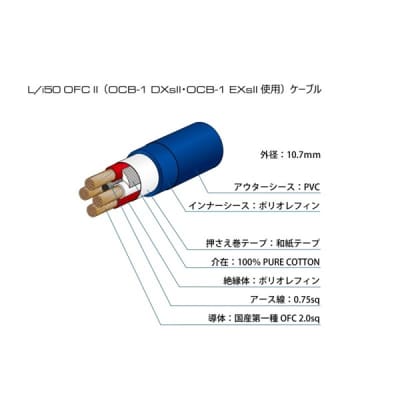

The identity of L/i50 Cable is called the 4-core Star Cad. The OCB-1 EX II uses a new cable L/i50 OFC II that follows this universal identity.

Features
A star quad structure that has been the same since the release of the L/i series, and is a star quad structure that twists four core wires together. By twisting the two diagonal lines together, the radiant noise generated by the cable is cancelled out, reducing unnecessary noise.
-Fiber-resistant polyolefin is used for the insulator and sheath.
-The PVC coating applied on the sheath contributes to external noise blocking, and also protects the cable from breakage due to unforeseen circumstances such as trampling. This cable has two important pillars: sound and safety.
The conductor structure remains the same as the previous model, with 175 pieces/0.12mm, and combines cable handling and soft sound.
Supplying power even when using a full 4-insert power source (*1) Large capacity 4.0sq. The 4-core Star Cad Cable not only satisfies your audio files, but also provides a size that is sufficient to play the core of your home theater.
*1) Use the total current usage of the connected device to be used within 15A.
While the basic structure of the 4-core star quad remains the same, the conductor is made of purely Japanese-made C1011 OFC conductors (domestic Type 1 OFC). The conductors specialize in audio create delicate musical expression.
An additional ground wire is added to support three-pole audio equipment with grounding.
Coloring with outlet collars and exterior sleeves that fully satisfy your needs and use under modern interiors. In addition, the vibration-damping effect of the exterior sleeve improves S/N, further increasing musical expression.

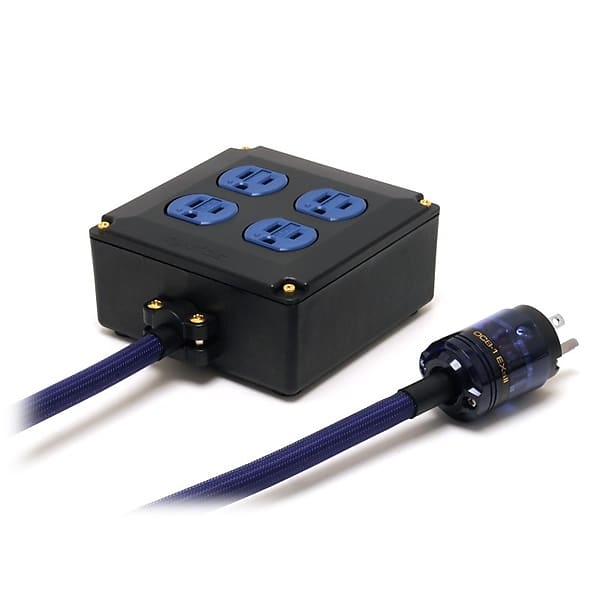

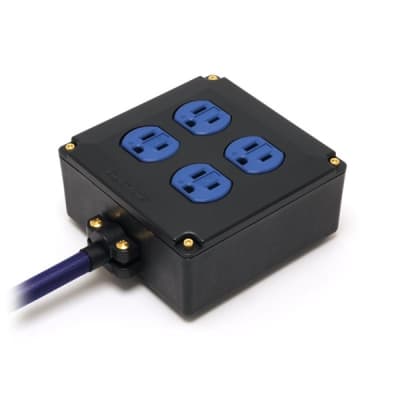

The OCB-1 EXs II is a power strip that combines its ability as a power strip and its elegant look.

Luxuriously used domestically produced pure silver wire for the internal wiring
Luxuriously used domestically produced pure silver wire for the internal wiring that connects the outlet. By using low-purity and inexpensive silver wire from China, it distinguishes itself from products that claim to use silver wire, and fully demonstrates the characteristics of silver wire, which boasts the highest conductivity. The silver wire used by Oyaide Denki has a skin pass processing on the surface, achieving a wide sound image representation with no silver-specific glare. The ground wire is also made of precision conductor 102 SSC, which boasts a conductivity of 102%, developed by Oyaide Electric. This is why Oyaide Electric's attitude towards manufacturing is so luxurious that it is not only invisible, but also energised here.

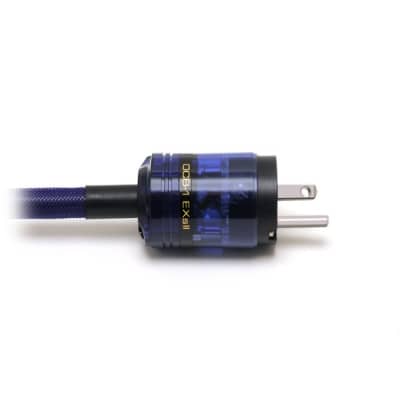

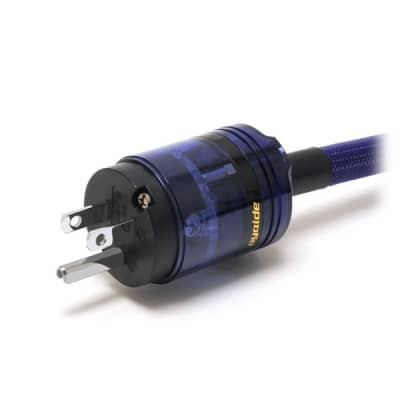

The ARMORED series power plug is installed for the first time as a finished product of Oyaide Denki
Since its release, the AP-037 power plug from the 'ARMORED' series, which boasts the highest level of robustness in power plugs and connectors, has been modified in a color exclusive to the 'OCB-1 EXs II'. This is the first time that Oyaide electrical product is installed in the 'ARMORED' series. The phosphor bronze blade, which is the same material as the outlet, is thick-walled silver rhodium plating, and the mechanical earthing mechanism that fastens the main body, creates music that does not bleed.

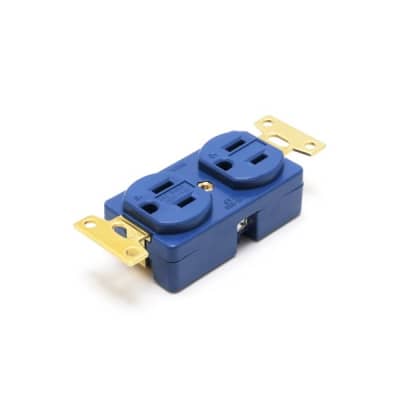

Domestic outlets that continue to carry on history and achievements today
The SWO-DX/ULTIMO, a representative model with a phosphor bronze made in the same material as the power plug, not only individual and finished products, but also many OEMs in Japan and overseas, and the cumulative number of shipments is now available in a color (blue) exclusive to the OCB-1 EXs II, and is made from the same material as the power plug and silver rhodium plating.

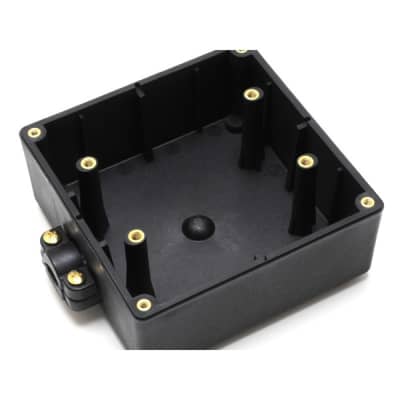

Highly rigid outlet box made of PBT-GF30 material
Oyaide Concent Box, this box is the key to sound. The housing material is PBT-GF30, which contains 30% GF (glass fiber) and highly rigid engineering plastic material polybutylene terephthalate. PBT resin is a polyester resin obtained by polycondensation of terephthalic acid (TPA) and 1,4-butanediol (1,4-BG). It is a crystalline engineering plastic with excellent moldability, electrical properties, flame retardancy, chemical resistance, heat aging resistance, weather resistance, and coloring properties. This material contains glass fiber (GF) and is reinforced. This gives the tensile strength and Charpy impact strength more than twice the normal level, and the DTUL (load deflection temperature) is 50 to 85C or more, and the dimensional stability advantage at high temperatures is 200C or more, three times more than 200C. This high rigidity reduces unnecessary noise from the outlet box, which can cause blurry and bleeding.
The structure uses a monocoque structure, and...
