Eventide FL201 Instant Flanger

Rare and very cool Eventide Instant Flanger, model FL201.  This unit, serial number 20710, has 1 input, 1 Main Output and 1 Aux (out of phase) output for simulated stereo.

Eventide was one of the earliest American manufacturers of time domain processors. Flanging was accidentally discovered at Gold Star studios in Hollywood when an engineer inadvertently summed the outputs of two tape machines that were slightly out of sync.  The resulting sound was truly unique - the now classic “jet plane” effect. The Instant Flanger, built from 1976 until 1984, used analog delay “bucket brigade” ICs to delay the signal and create the same effect. Many other manufacturers attempted to copy the design of many of Eventide’s ground breaking products, including the Instant Flanger.

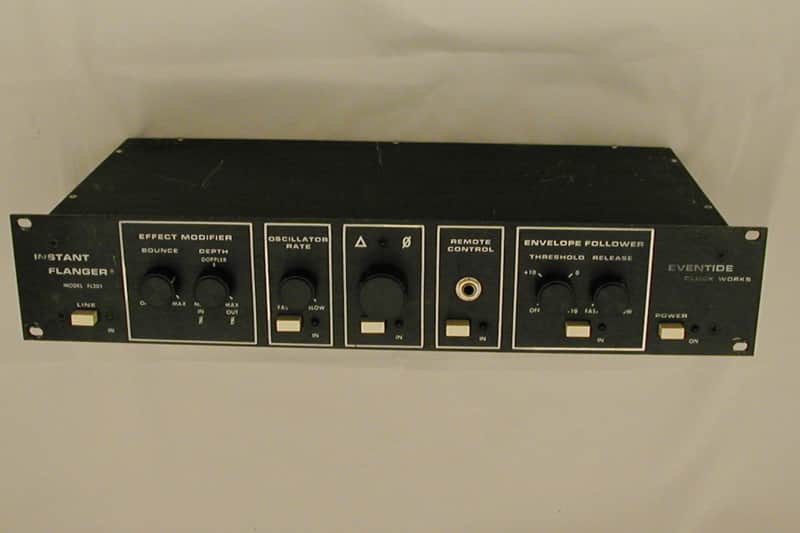

The Instant Flanger offered operation modes that far exceeded most other manufacturers. In addition to the usual modulated flanging, it has an Envelope Follower mode, Manual mode for dialing in specific fixed sounds and External control, which was originally designed to take control voltages from early modular synthesizers for really creative effects.

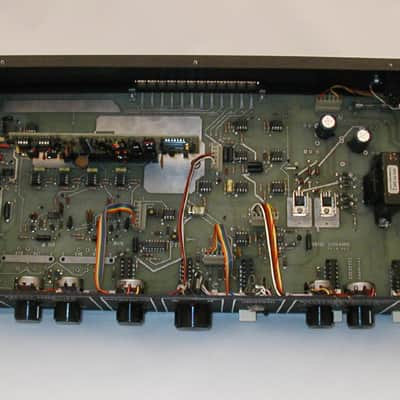

All capacitors in the audio path and power supplies have been replaced - should work well for many years to come. The unit has been fully calibrated and all specs have been confirmed. Cosmetic and mechanical condition is good. The front panel looks excellent except for very minor scratches near the rack holes. The circuit board and internal electronics are in Excellent good condition.

A copy of the owner’s manual is included. Note: this unit is currently set 115 VAC but can be internally modified for 240 VAC operation. Three brand new, high quality XLR adaptors have been added.
