Skidmark - Sonomatic Deluxe V1 (PCB only)

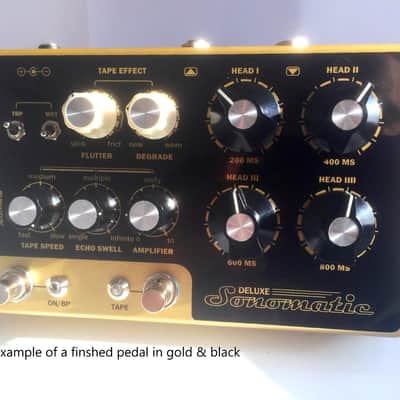

Here’s my 1590 DD sized monstrosity called ‘Sonomatic Deluxe’ It’s a multitap ‘tape-style’ delay making use of four PT2399 IC’s in series. The delay-line has 4 separate controllable taps (or ‘heads’), making it possible to create ‘patterns’ in the repeats. Each tap has a max. delay time of approx. 200 ms, resulting in a total max. delay time of 800 ms.  De Tape Effect function consists out of the ‘Degrade’ filter which mimics the tape age/quality, and the ‘Flutter’ function which simulates slight mechanical friction. With a little effort you can create pretty convincing results! Furthermore, the ‘WET’ switch toggles on and off the dry analogue through for wet/dry set up’s, and the TBP switch toggle’s between true bypass and bypass with tails.

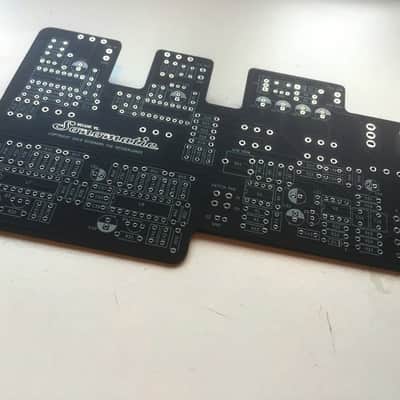

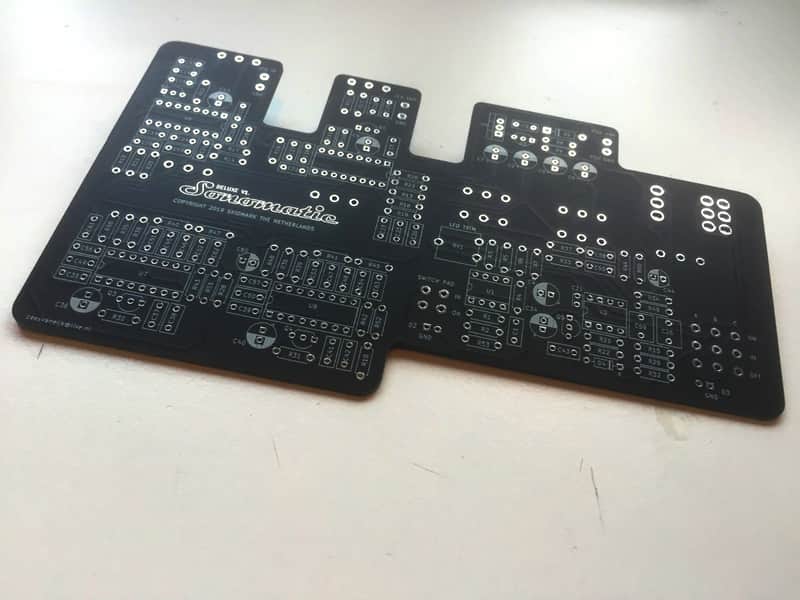

Duly note this offering refers to the PCB (printed circuit board) and building instructions only!
