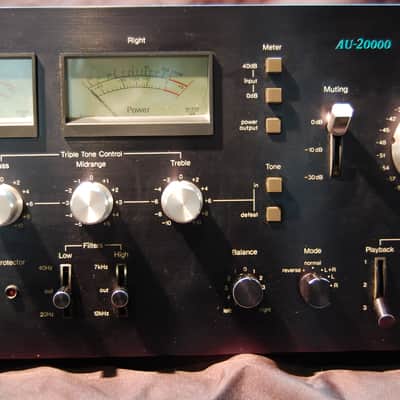

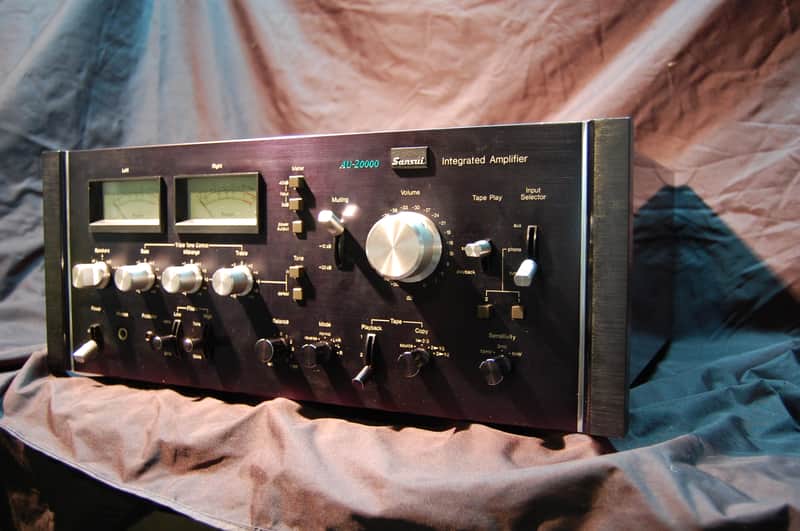

Sansui AU-20000 1976

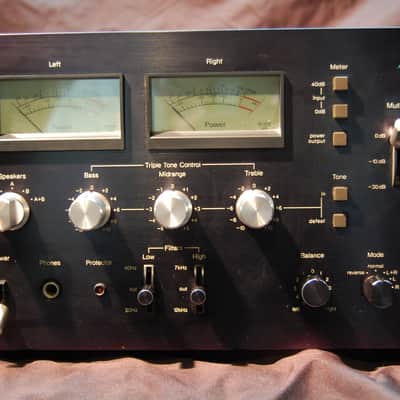

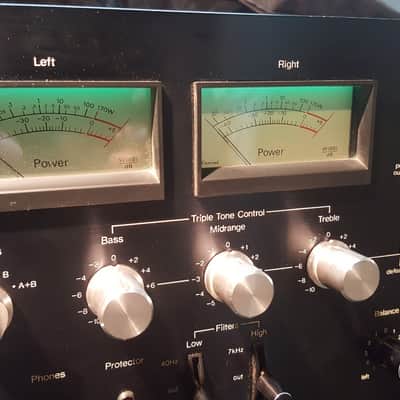

Sansui TOTL AU-20000 Integrated Amplifier, 170 wpc/8 ohms, beautiful condition and works great!  These integrated amplifiers are getting hard to come by.  PM me with any questions, ships from NJ or local pickup.  Comes with original box and user manual.  As with all vintage equipment, this is being sold as is.  It works perfectly, both meters light up and bounce when applying the juice.  The sound from both channels is crystal clear, a really great example of this legendary integrated amplifier!

From HiFi Engine:

The Sansui AU-20000 is an integrated stereo amplifier delivering a continuous 170 watts, minimum RMS, per channel, both channels driven into 8 ohms, over 20 to 20KHz bandwidth - with no more than 0.05 % total harmonic distortion.

Features include:

Eight-transistor equaliser with differential amps at initial stage gives an improved dynamic response, for an extremely accurate RIAA equalisation curve.

Triple protection circuits; temperature, DC voltage and ASO detection.

Selectable phono sensitivity/impedance, and a versatile tape monitor circuit make the AU20000 flexible and capable of handling a variety of recording and playback combinations.

Specifications

Power output: 170 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.05%

Damping factor: 80

Input sensitivity: 3mV (MM), 130mV (DIN), 130mV (line)

Signal to noise ratio: 70dB (MM), 80dB (DIN), 80dB (line)

Channel separation: 55dB (MM), 60dB (line)

Output: 130mV (line), 30mV (DIN), 0.7V (Pre out)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 460 x 178 x 400mm

Weight: 23.6kg

Year: 1976
