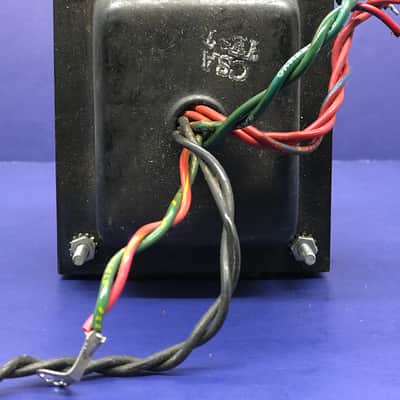

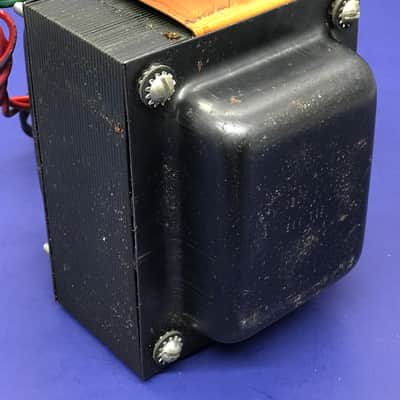

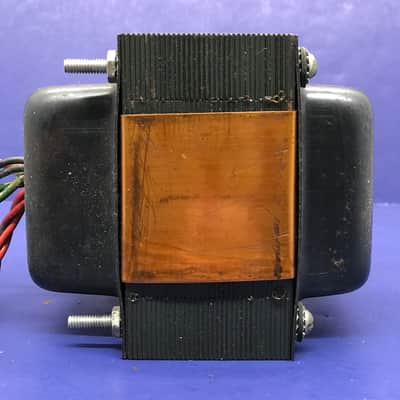

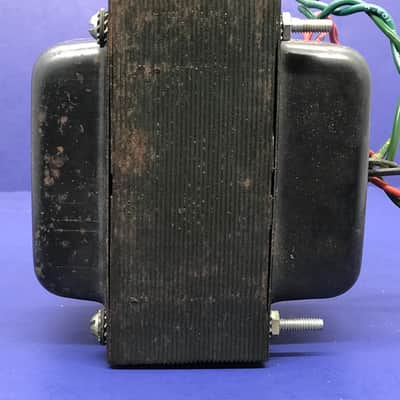

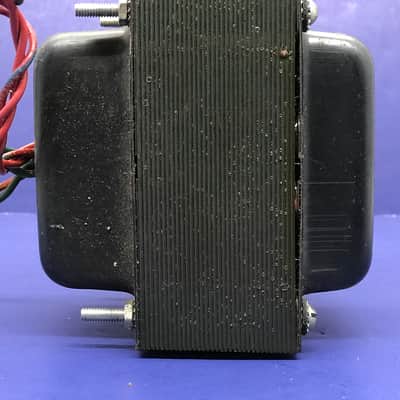

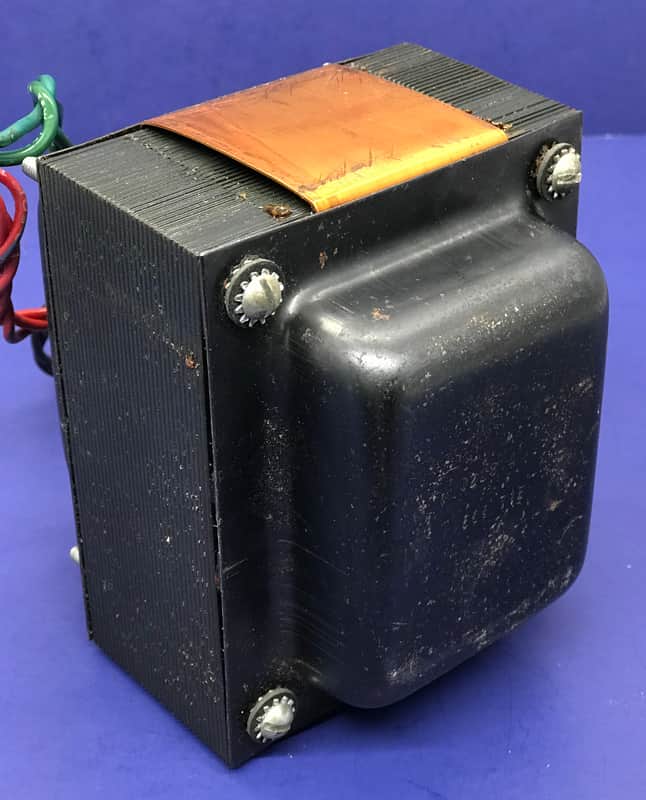

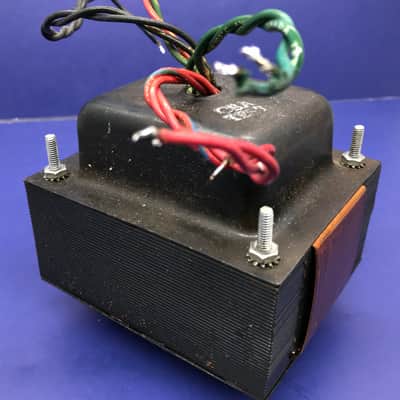

Fender Schumacher original power transformer removed from a working 1967 amp. Designed to support solid state rectifier with 2 6L6 power tubes.

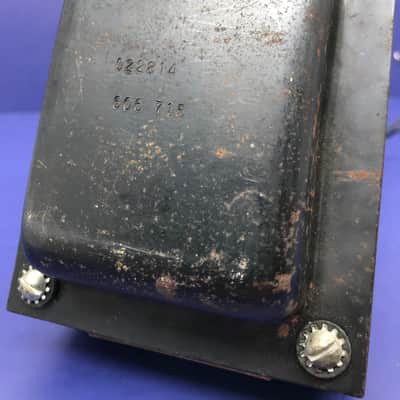

Fender part number: 022814
Date code:606 715
Full wire lead lengths from install in a Fender Bandmaster amp.
So from a restoration period correct stand point this would be correct for a Fender Black Tolex, Black Face:
Bassman Amp head circuit model AB165
Bandmaster Amp head circuit model AB763
Concert Amp circuit model AB763 (Though functionally correct these amps were not produced in 1967, but it will work fine)
This is also functionally equivalent to the earlier versions bearing part number 125P7D and 67233
This is a rather rare transformer in original vintage condition, so if you need one I can't imagine that there are many out there to be had, here's your chance. It will ship with insurance for free in a well padded box to arrive safely.
Fender part number: 022814
Date code:606 715
Full wire lead lengths from install in a Fender Bandmaster amp.
So from a restoration period correct stand point this would be correct for a Fender Black Tolex, Black Face:
Bassman Amp head circuit model AB165
Bandmaster Amp head circuit model AB763
Concert Amp circuit model AB763 (Though functionally correct these amps were not produced in 1967, but it will work fine)
This is also functionally equivalent to the earlier versions bearing part number 125P7D and 67233
This is a rather rare transformer in original vintage condition, so if you need one I can't imagine that there are many out there to be had, here's your chance. It will ship with insurance for free in a well padded box to arrive safely.
This item is sold As-Described
