Fender Dual Showman Reverb TFL 5000D Silverface 1969 Black

Fender Silverface Dual Showman Reverb

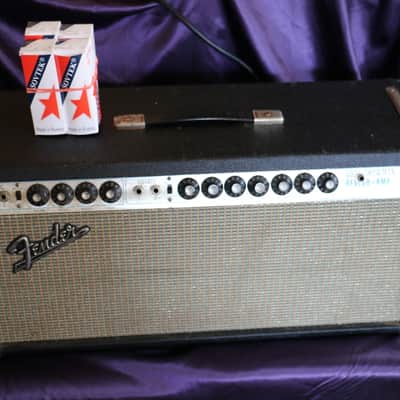

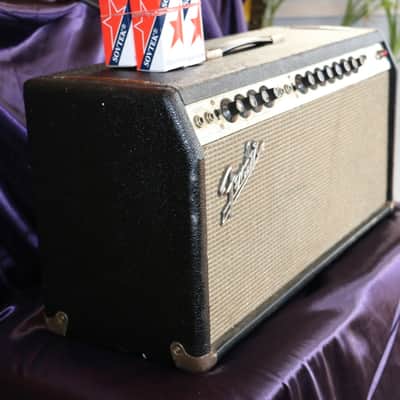

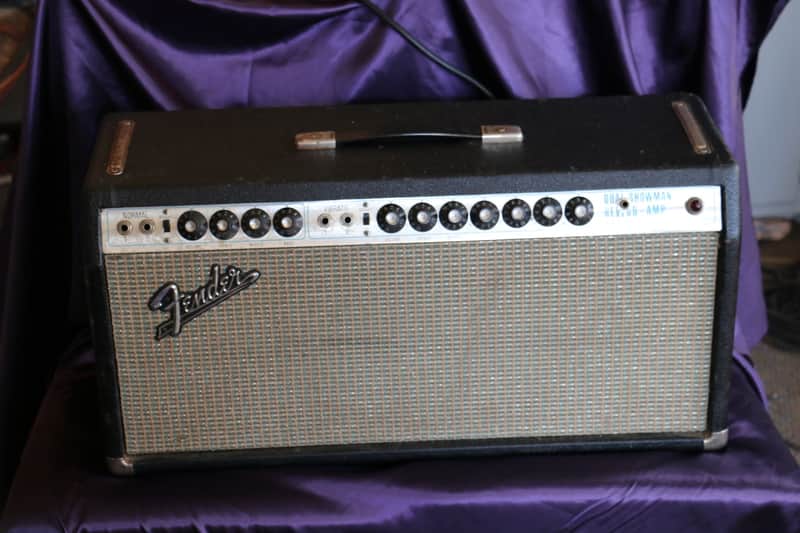

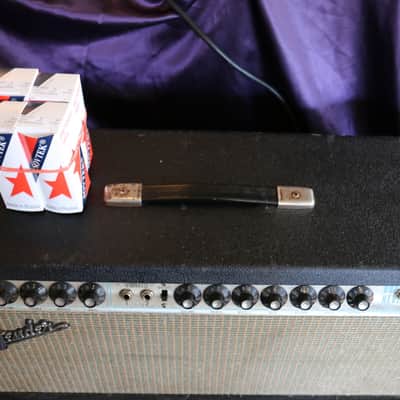

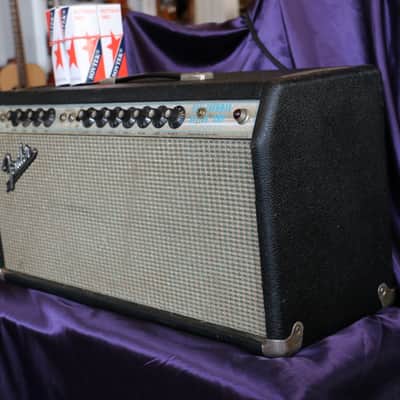

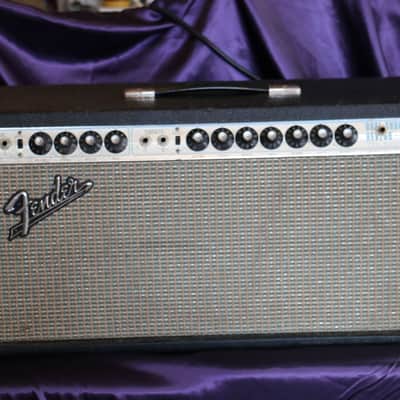

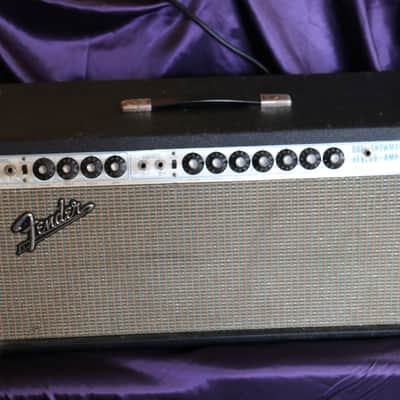

This is a seldom seen, Fender Dual Showman Reverb TFL5000D manufactured in 1969 during Fender's Silverface cosmetics era. This amp is in good overall condition for it's age showing some scuffing, chipping, scratching and light peeling to the tolex. There is some tarnishing to the aluminum silver face plate and chassis hardware. There was another jack added to the front panel that is no longer functional and the back panel is M.I.A. This amp has been recently checked and tuned up and is ready to provide another 40+ years of faithful, reliable service. The power cord was replaced with a safer, 3 prong unit. The reverb tank was replaced with a newer "MOD" upgrade unit. The power tubes were replaced with brand new Sovteks. The preamp tubes are the original issue RCA's. This is big, epic clean tone as it was meant to be. Full and liquid sounding with that classic Fender sparkle.

Model/Circuit Number: AC568, AA768 (TFL 5000D)
Years of Production: 1968 -- 1981
Era: Silverface
Configuration: Head
Controls: Silver forward facing w/ blue labels
Knobs: Black skirted w/ chrome center, numbered 1 -- 10

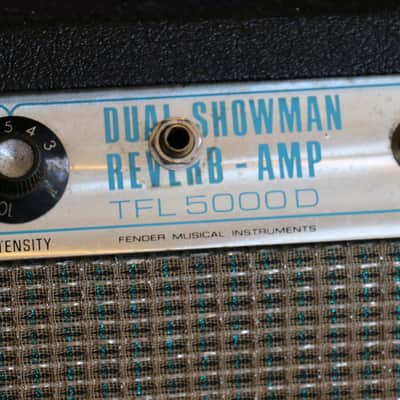

Faceplate

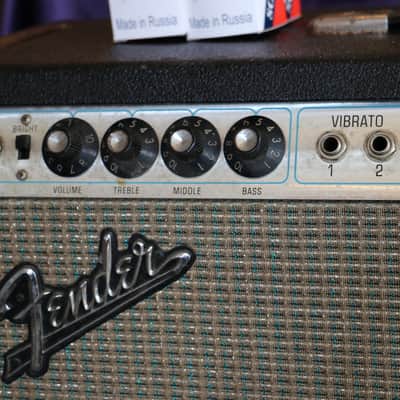

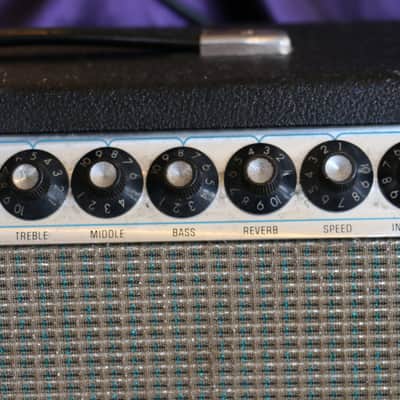

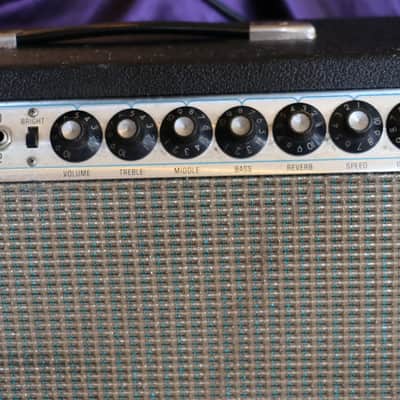

•Front: In, In, Bright Sw, Vol, Treb, Mid, Bass -- Vibrato: In, In, Bright Sw, Vol, Treb, Mid, Bass, Speed, Intensity, Reverb -- Master Vol (72-81) -- Pilot Lamp

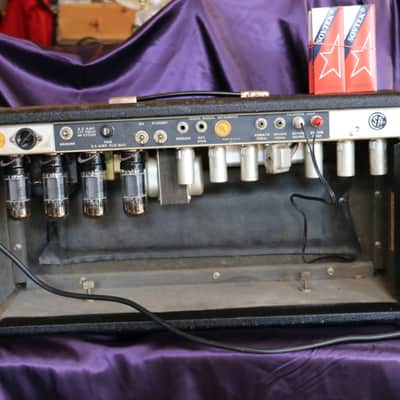

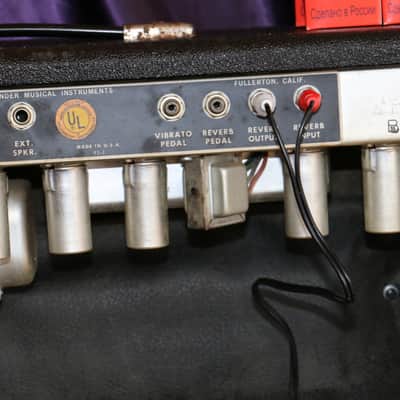

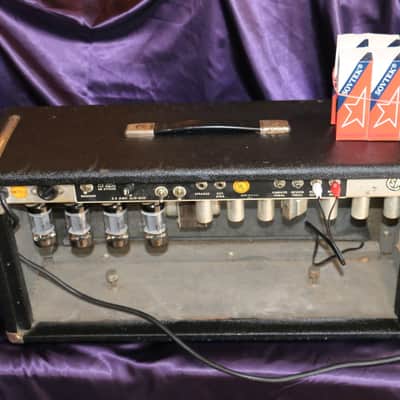

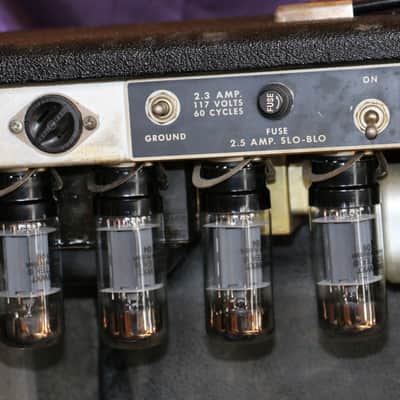

•Rear: AC Outlet, Ground Sw, Fuse (2½A), Power Sw, Standby Sw, Speaker Jack, Ex. Speaker Jack, Vibrato Jack, Reverb Jack, Reverb Out, Reverb In

Cabinet
•Dimensions: 13 x 26 x 9
•Hardware: Medium Chassis Straps 4 5/8"
•Handle: Black Strap
•Feet: Glides
•Corners: Corner Protectors

Covering Material
•Tolex/Tweed: Black Tolex
•Grill Cloth: Blue sparkle grille cloth w/ aluminum frame (68-69), w/o aluminum frame (70-81)

Logo: Grille mounted, raised, chrome & black script "Fender" w/ tail(68-75) or "Fender" w/o tail (76-80) (head and cab)
Weight: 40 lbs. (Head)

Effects: Reverb, Tremolo
Watts: 68-76: 100 Watts, 77-81: 135 Watts
Tubes
•Pre amp: Normal: 7025, Tremolo: 7025 and 1/2 7025
•Power: 4 x 6L6GC

Bias: Fixed with bias adjustment pot.
Rectifier: Solid State
Phase Inverter: 12AT7 (Long Tailed)
Tremolo: 12AX7 (photoresistor)
Reverb Driver: 12AT7
Reverb Recovery: 1/2 7025
